Fuse: Application and ID
Engine Room R/B No.1 and Engine Room J/B No.1

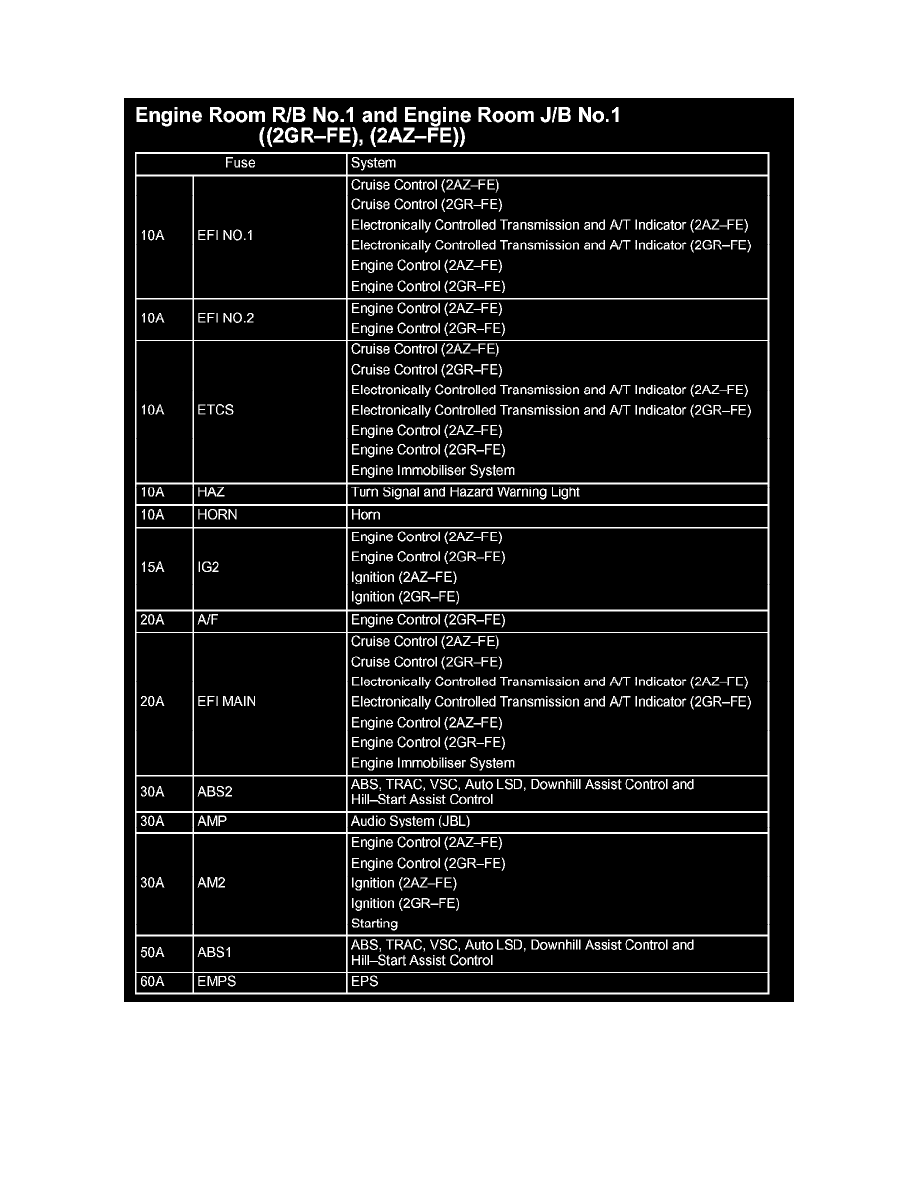

Engine Room R/B No.1 And Engine Room J/B No.1 Part 1

Power and Ground Distribution
Fuse / Component Information
Application and ID
Engine Room R/B No.1 and Engine Room J/B No.1
