RAV4 4WD L4-2.4L (2AZ-FE) (2007)

Page 1
background image

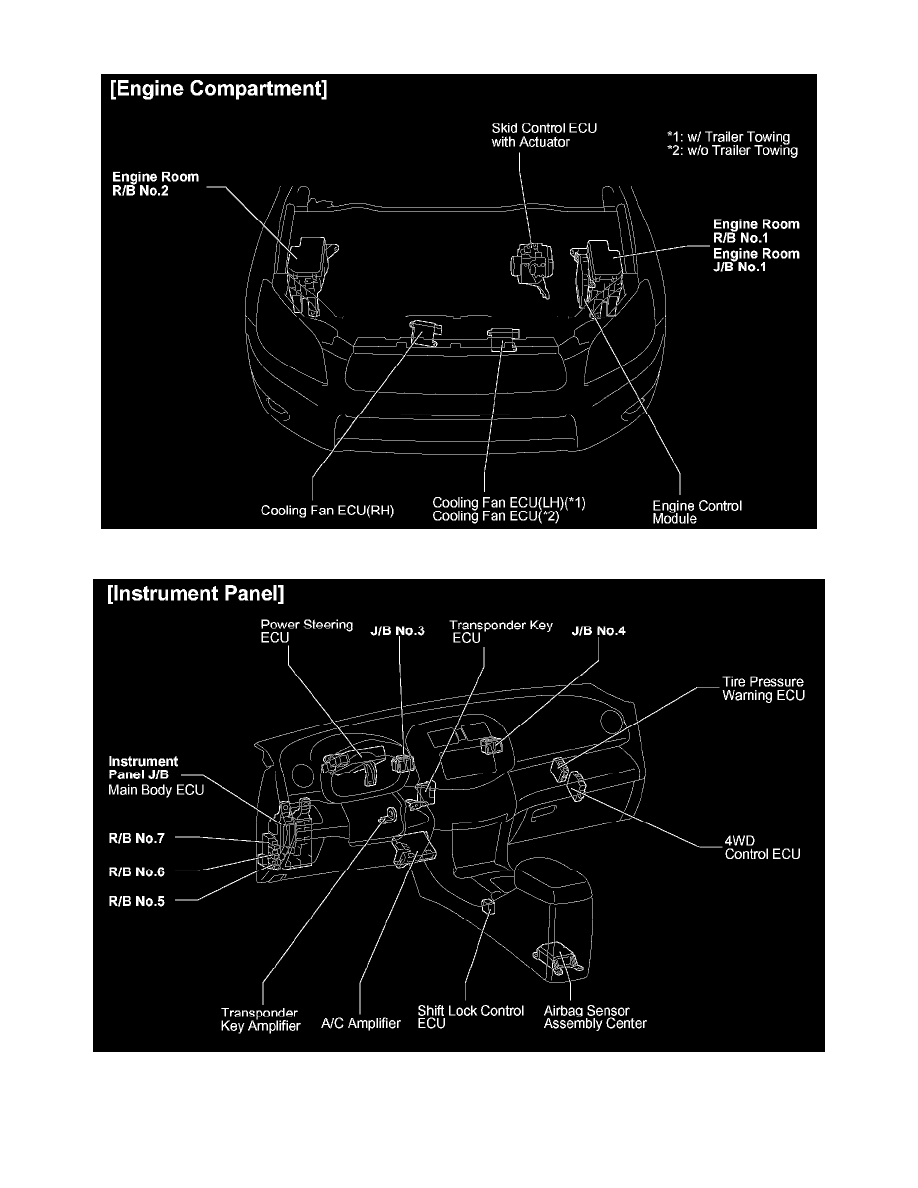

Fuse Block: Locations

Engine Compartment

Instrument Panel
