RAV4 4WD V6-3.5L (2GR-FE) (2006)
/Page-389001.png)
Coolant: Service and Repair
COOLANT REPLACEMENT
1. REMOVE NO. 1 ENGINE UNDER COVER

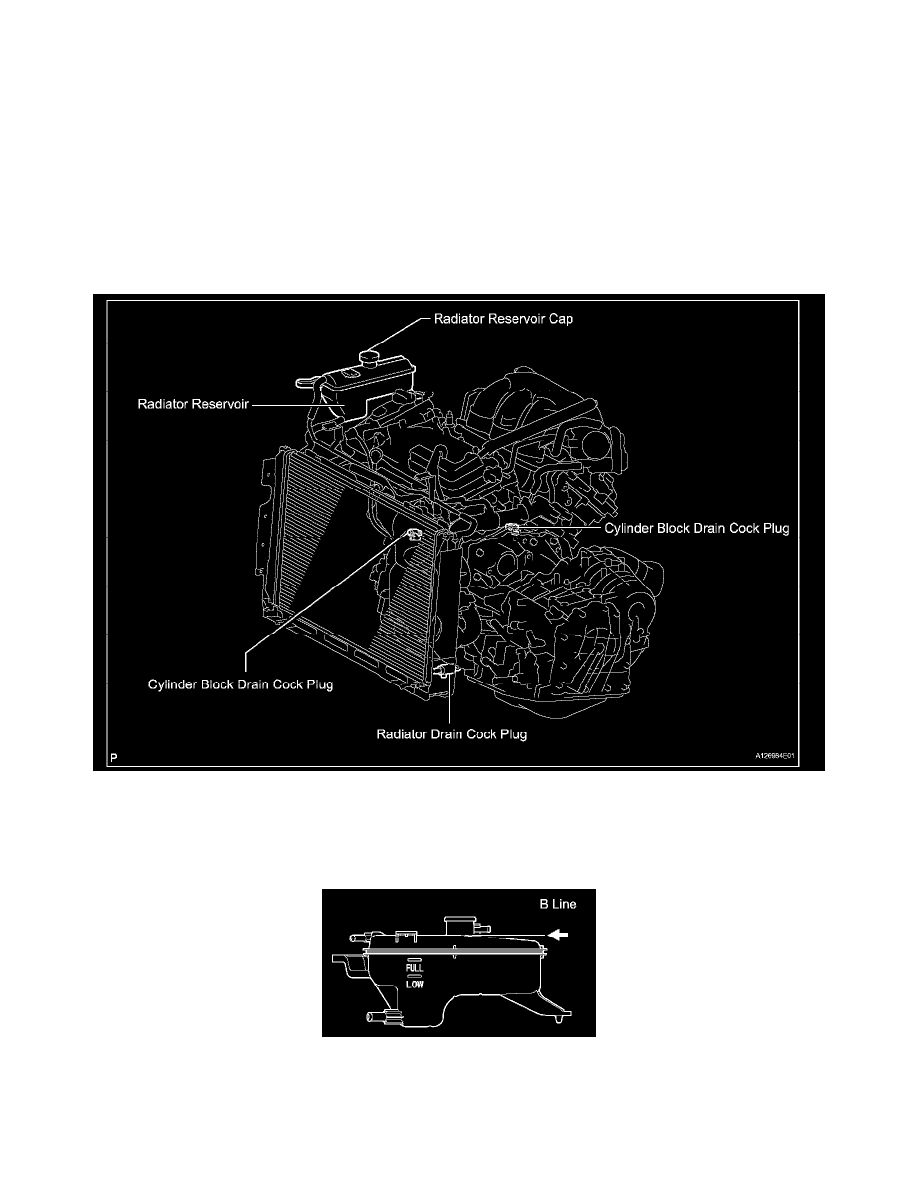

2. DRAIN ENGINE COOLANT
a. Loosen the radiator drain cock plug.
HINT: Collect the coolant in a container and dispose of it according to the regulations in your area.
b. Remove the radiator reservoir cap.
CAUTION: Do not remove the radiator reservoir cap while the engine and radiator are still hot.
Pressurized, hot engine coolant and steam may be released and cause serious burns.
c. Loosen the 2 cylinder block drain cock plugs.
3. ADD ENGINE COOLANT
a. Tighten the radiator drain cock plug by hand.
b. Tighten the 2 cylinder block drain cock plugs.
Torque: 12.7 Nm (130 kgf-cm, 10 ft. lbs.)
c. Add TOYOTA Super Long Life Coolant (SLLC) to the radiator reservoir filler opening.
d. Continue adding TOYOTA SLLC until it is filled to the B line at the base of the reservoir's filler neck.
Standard capacity
