Sequoia 2WD V8-4.7L (2UZ-FE) (2003)

Page 1
background image

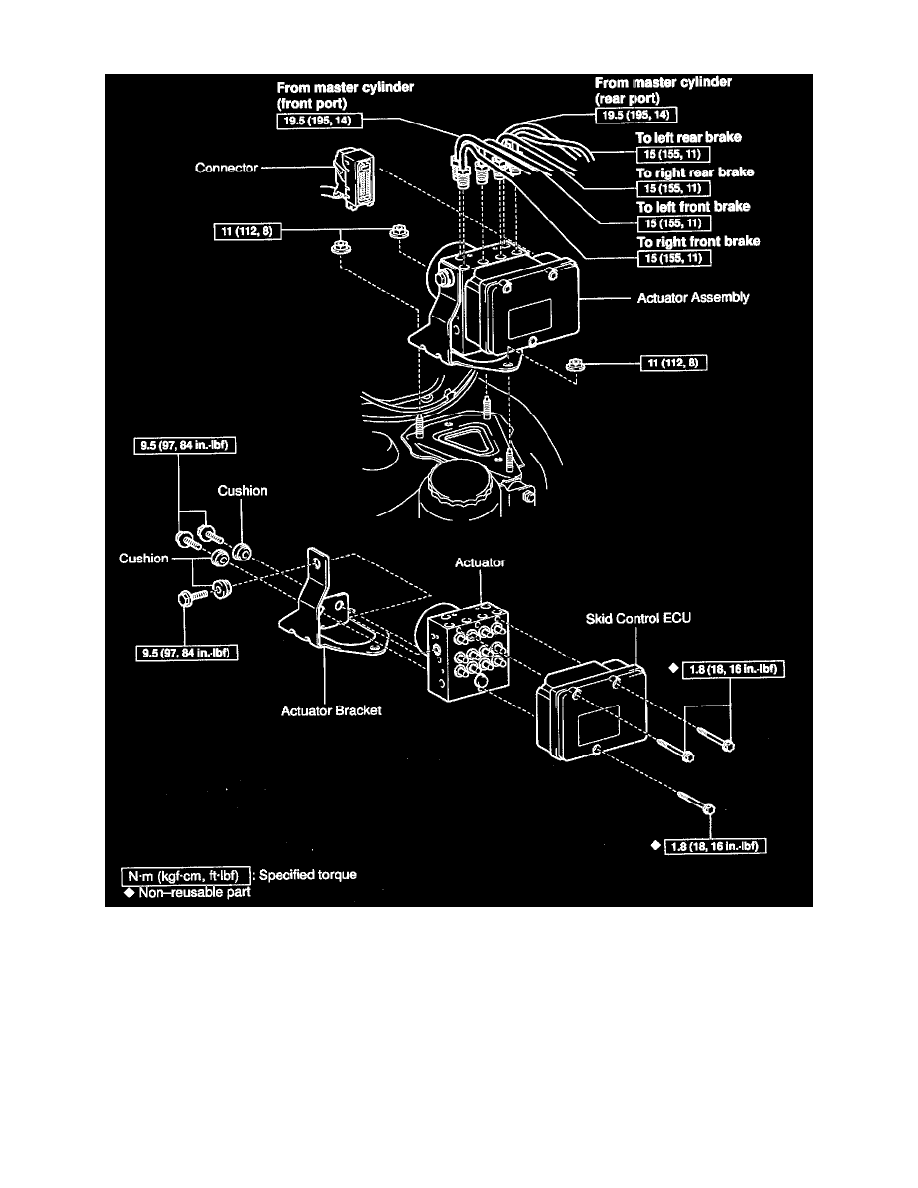

Hydraulic Control Assembly - Antilock Brakes: Diagrams

ABS & VSC ACTUATOR REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
