Sequoia 2WD V8-4.7L (2UZ-FE) (2003)
/Page-988002.png)

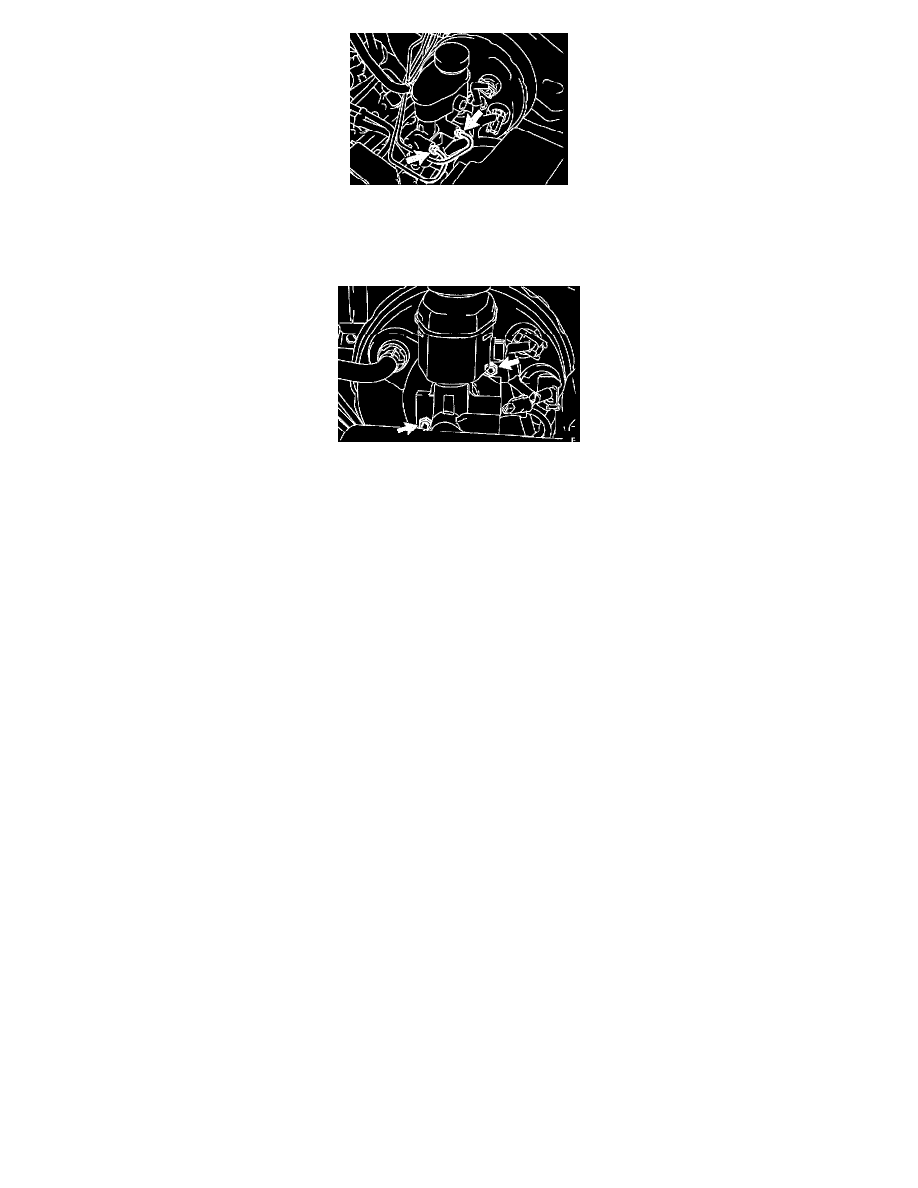

5. DISCONNECT BRAKE LINES
Using SST, disconnect the 2 brake lines from the master cylinder.
SST 09020-38200
Torque: 19.5 Nm (195 kgf-cm, 14 ft. lbs.)

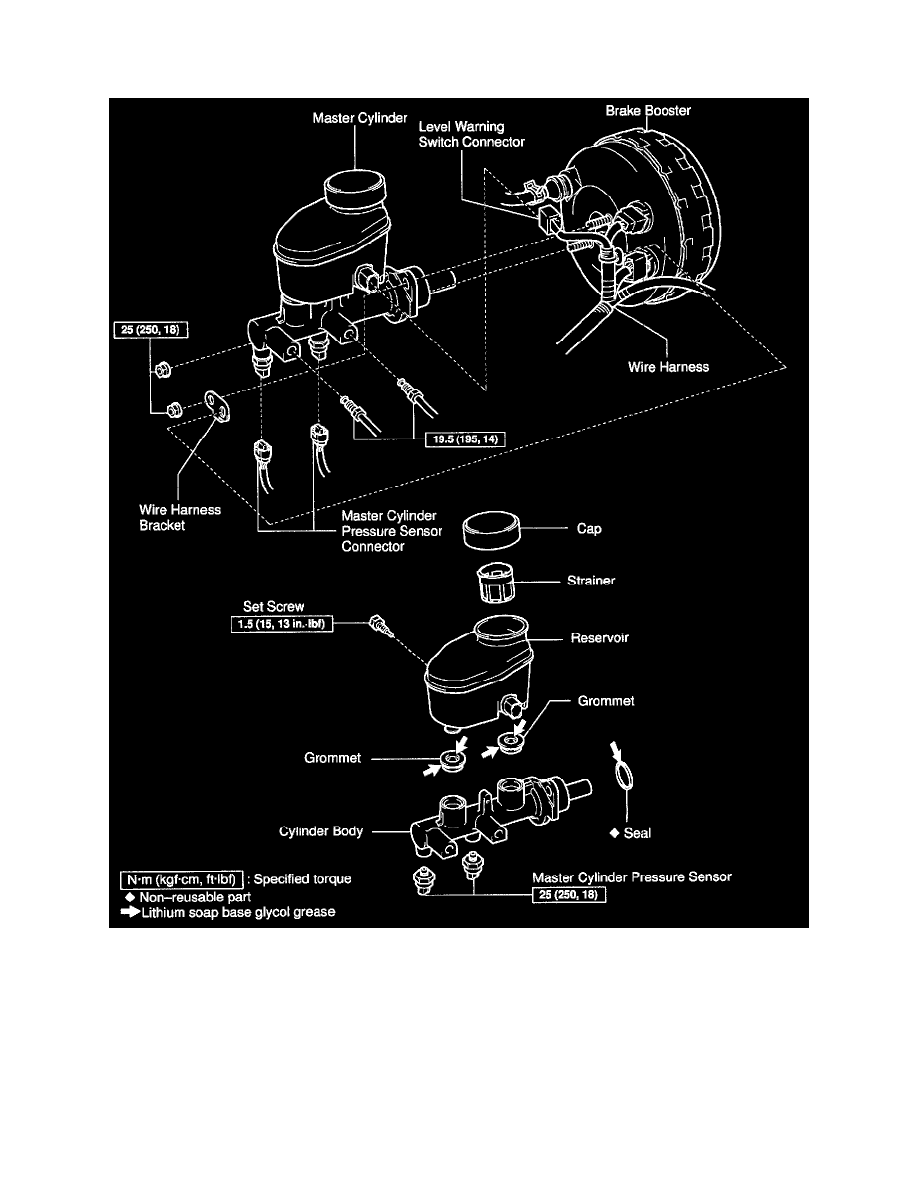

6. REMOVE MASTER CYLINDER
a. Remove the 2 nuts and wire harness bracket.
Torque: 25 Nm (250 kgf-cm, 18 ft. lbs.)
b. Pull out the master cylinder from the brake booster.
INSTALLATION
Installation is In the reverse order of removal.
HINT:
^
After installation, fill the brake reservoir with brake fluid and bleed brake system.
^
Check for leaks.
NOTICE: In case of replacing the master cylinder assembly or master cylinder pressure sensor, perform the zero point calibration of the steering
angle, master cylinder pressure, yaw rate and deceleration sensors.
