Sequoia 2WD V8-4.7L (2UZ-FE) (2003)
/Page-993001.png)

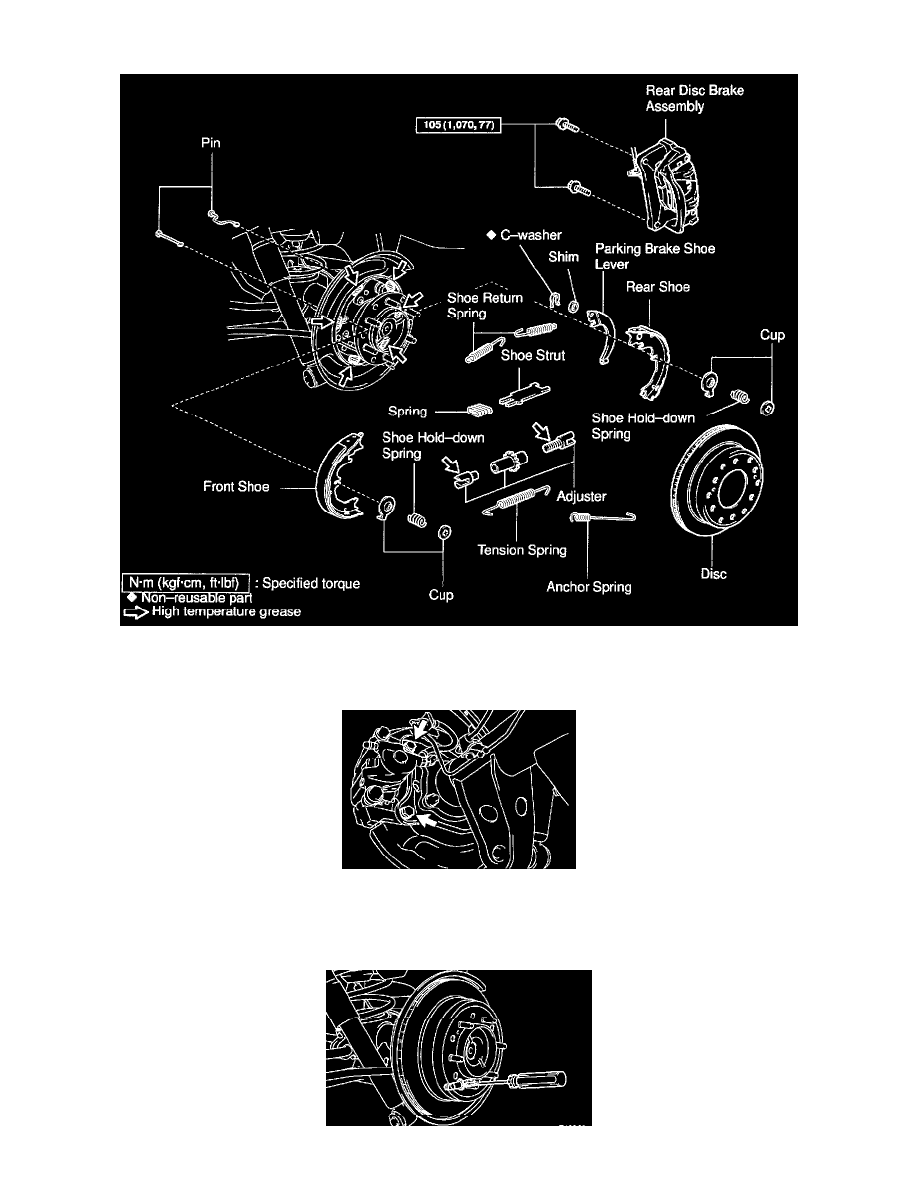

Parking Brake Shoe: Service and Repair
DISASSEMBLY
1. REMOVE REAR WHEEL
Torque: 110 Nm (1,150 kgf-cm, 83 ft. lbs.)
2. REMOVE REAR DISC BRAKE ASSEMBLY
a. Remove the 2 mounting bolts and remove the disc brake assembly.
Torque: 105 Nm (1,070 kgf-cm, 77 ft. lbs.)
b. Suspend the disc brake securely and so the hose is not stretched.
