Page 1

background image

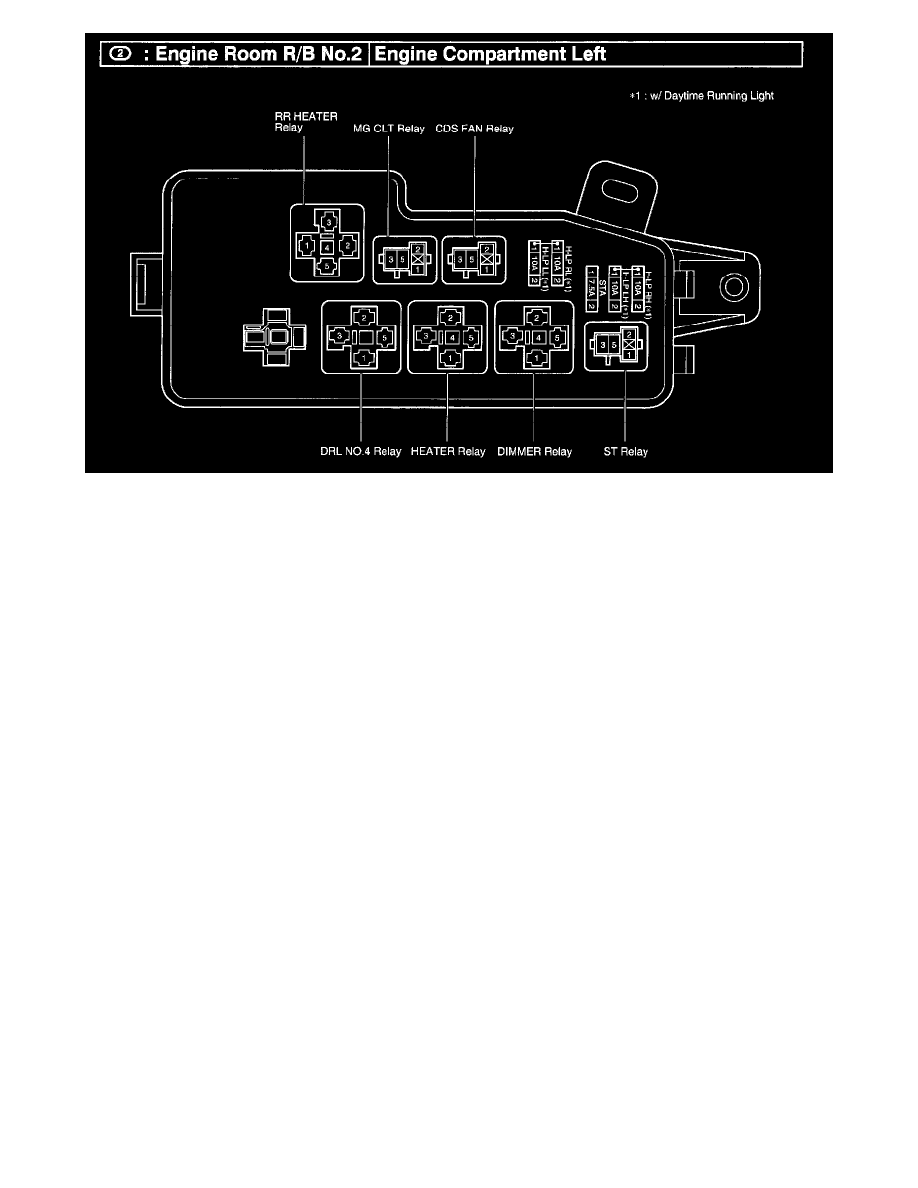

Engine Room R/B No.2 - Engine Compartment Left

Heating and Air Conditioning
Relays and Modules - HVAC
Blower Motor Relay
Component Information
Locations
