Sequoia 2WD V8-4.7L (2UZ-FE) (2003)

Page 1
background image

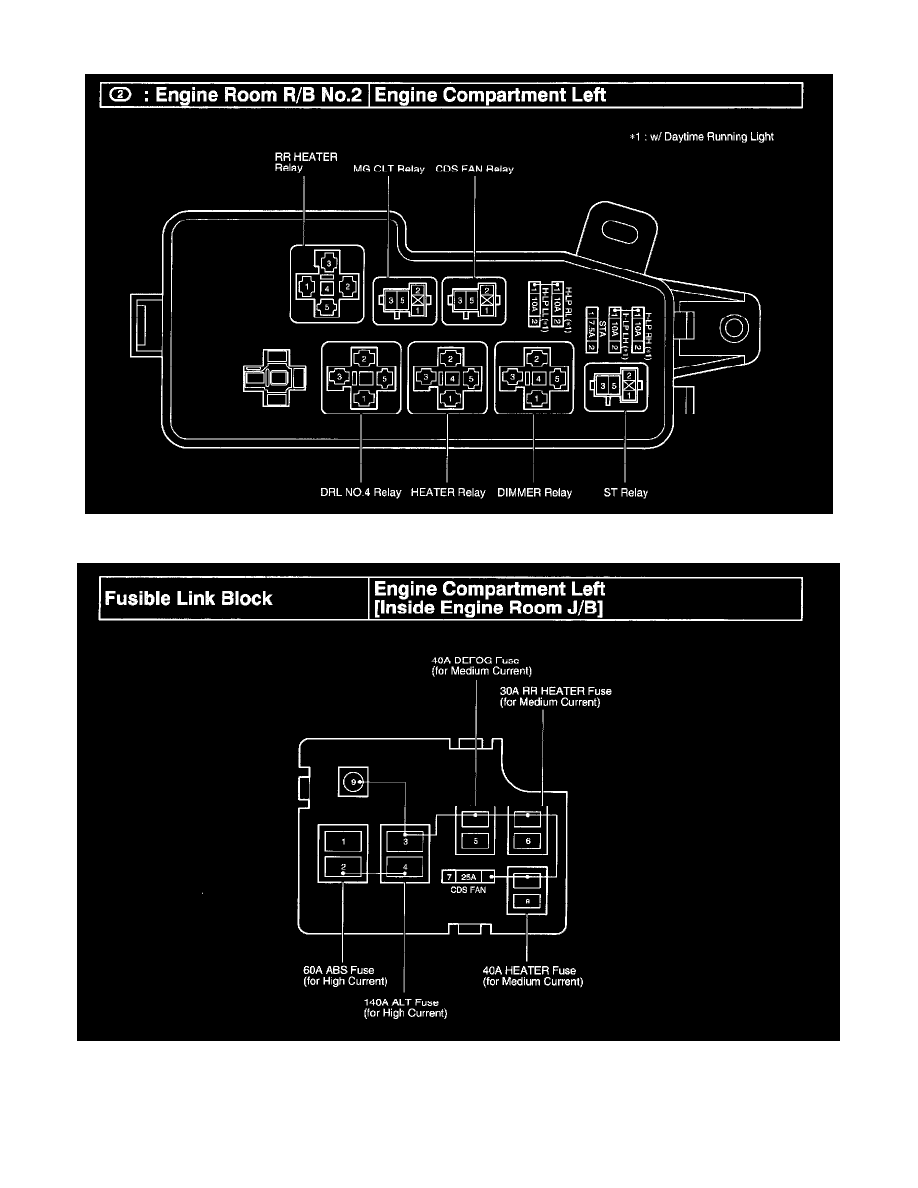

Fuse Block: Locations

Engine Room R/B No.2 - Engine Compartment Left

Fusible Link Block - Engine Compartment Left [Inside Engine Room J/B]
