Power Distribution Relay: Locations

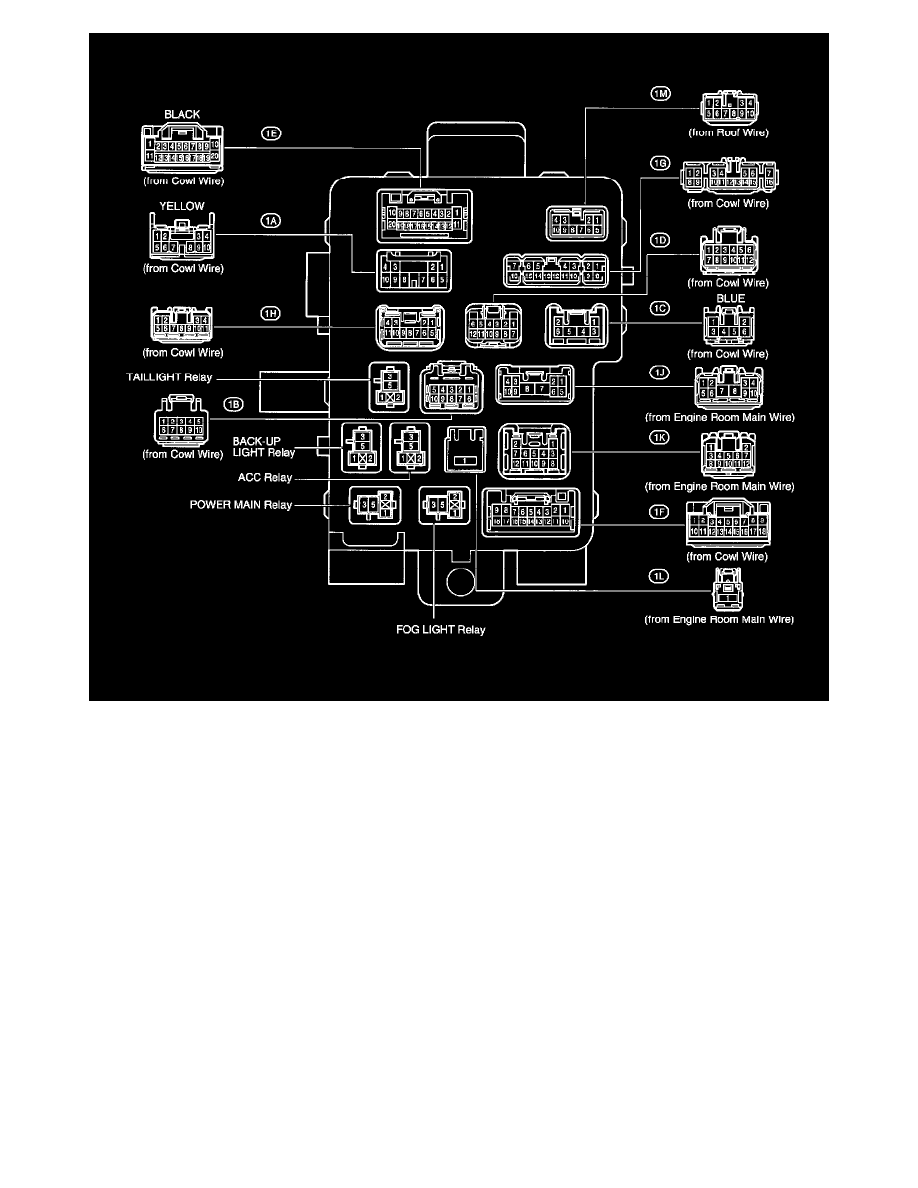

ACC Relay

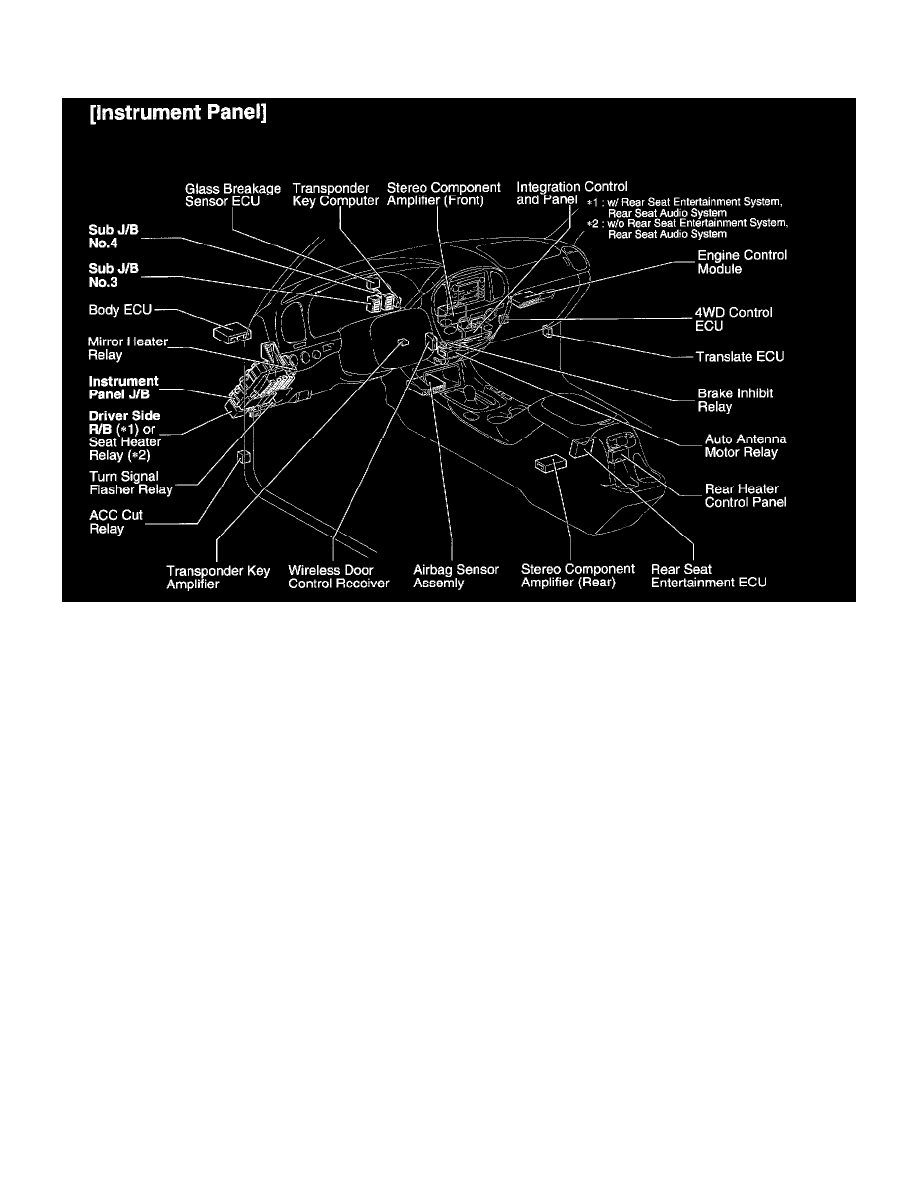

Instrument Panel

Power and Ground Distribution
Power Distribution Relay
Component Information
Locations
ACC Relay
