Sequoia 2WD V8-4.7L (2UZ-FE) (2003)
/Page-761002.png)

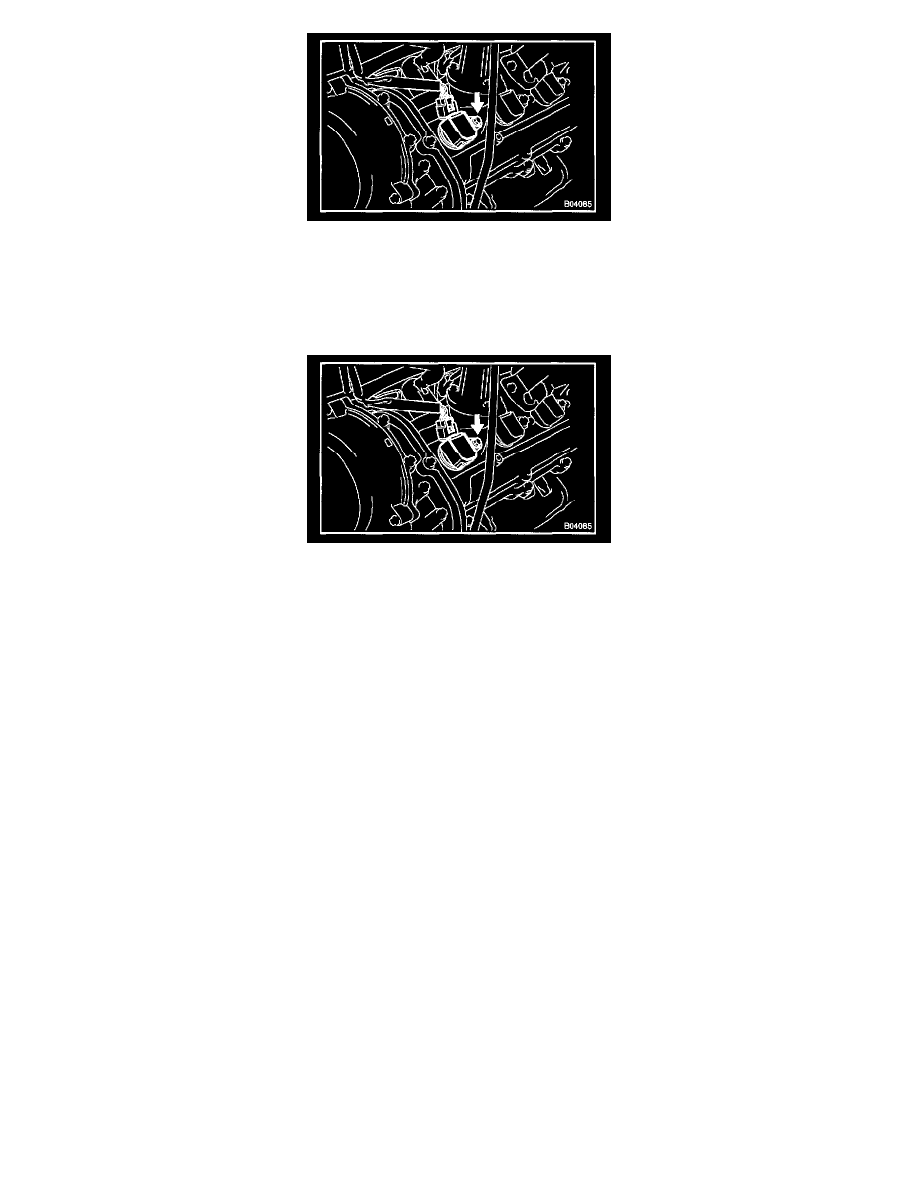

1. DISCONNECT IGNITION COIL (WITH IGNITER) CONNECTORS
2. REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS
Remove the bolt, and pull out the ignition coil (with igniter). Remove the 8 ignition coils (with igniter).
INSTALLATION
1. INSTALL IGNITION COILS (WITH IGNITER) TO SPARK PLUGS
Install the ignition coil (with igniter) with the bolt. Install the 8 ignition coils (with igniter).
Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)
2. CONNECT IGNITION COIL (WITH IGNITER) CONNECTORS
