Sequoia 2WD V8-4.7L (2UZ-FE) (2003)

Page 1
background image

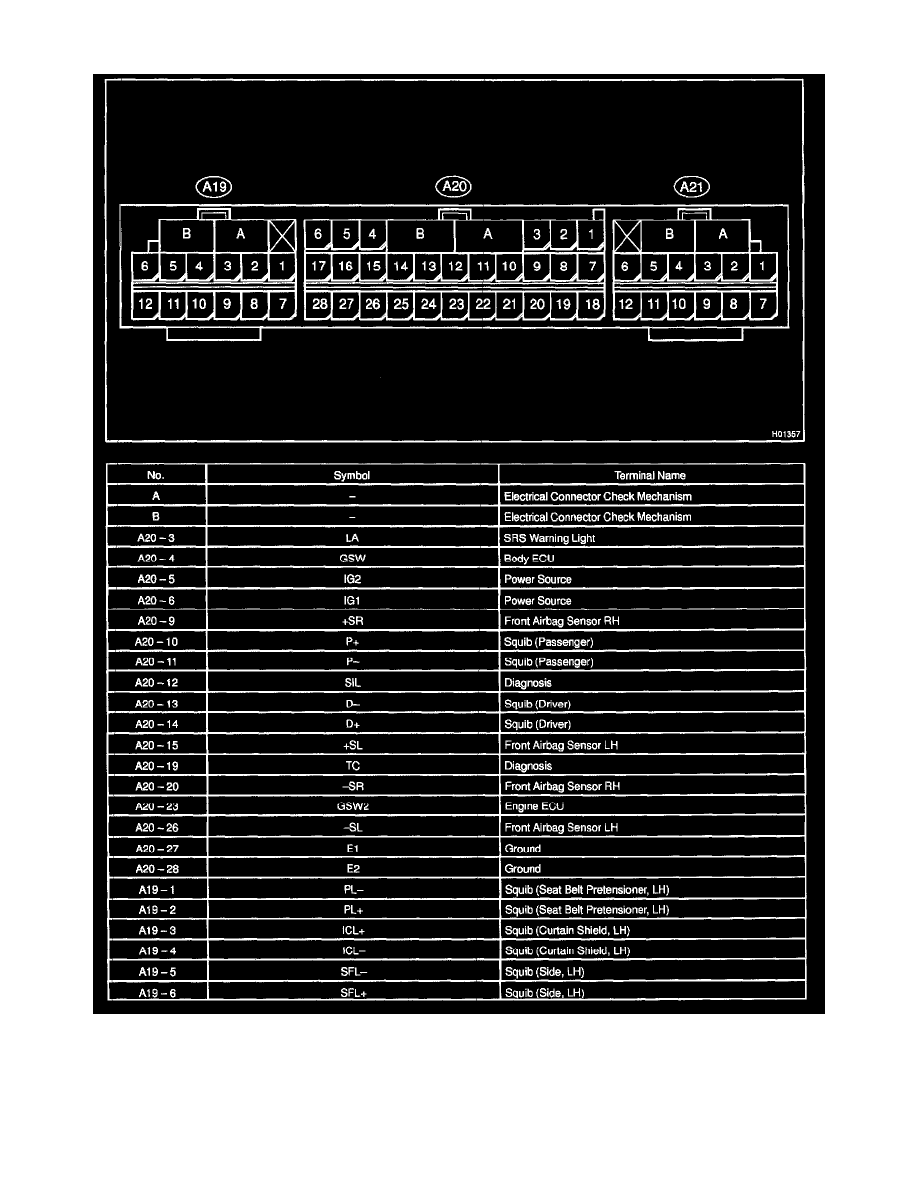

Air Bag Control Module: Pinout Values and Diagnostic Parameters

Terminals Of ECM/Pinouts Part 1
