Sequoia 2WD V8-4.7L (2UZ-FE) (2003)
/Page-1211001.png)

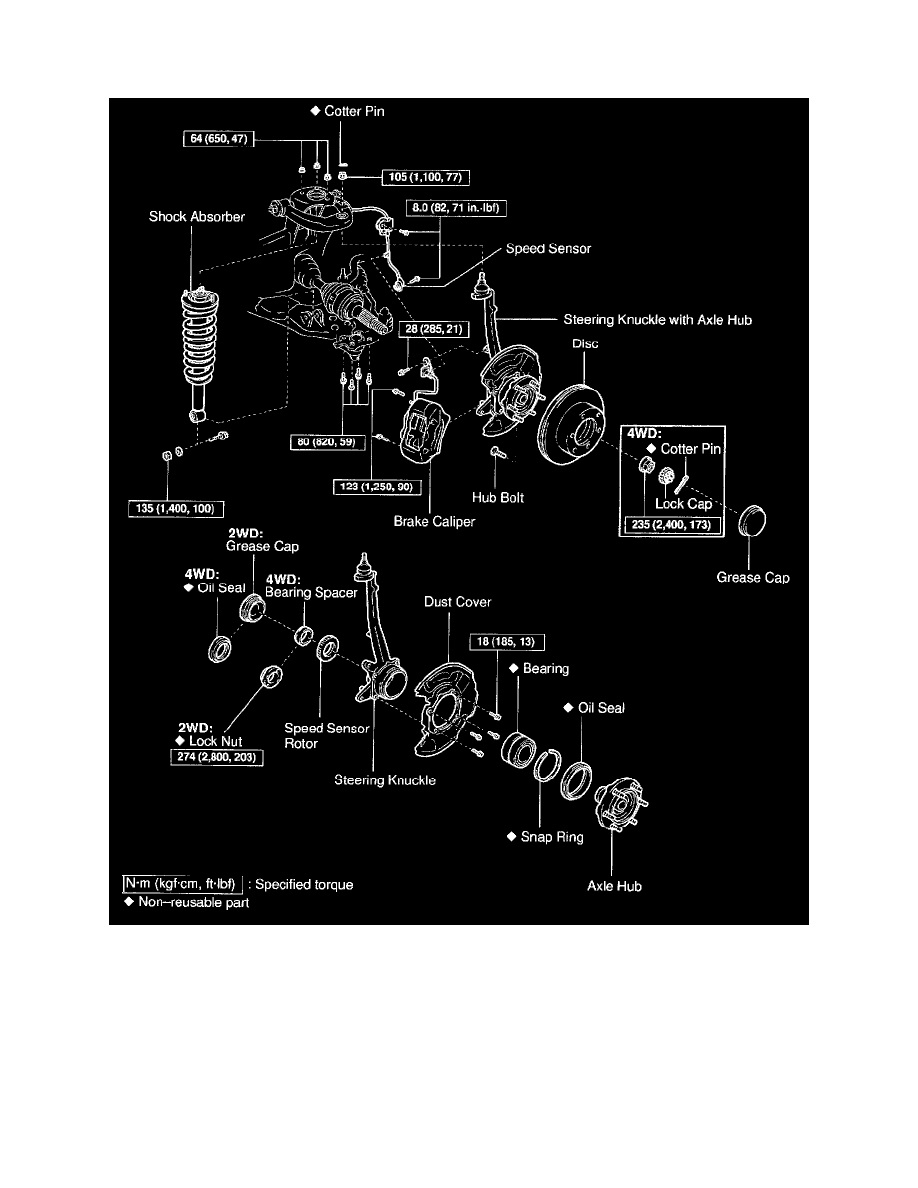

Wheel Hub: Service and Repair
Disassembly and Assembly
DISASSEMBLY
1. 2WD: REMOVE GREASE CAP
a. Mount the axle hub in a soft jaw vise.
HINT: Close the vise until it holds hub bolts. Do not tighten further.
b. Using a screwdriver, remove the grease cap.
2. 4WD: REMOVE OIL SEAL (INSIDE)
a. Mount the axle hub in a soft jaw vise.
HINT: Close the vise until it holds hub bolts. Do not tighten further.
