Page 2

background image

Part 2 Of 2

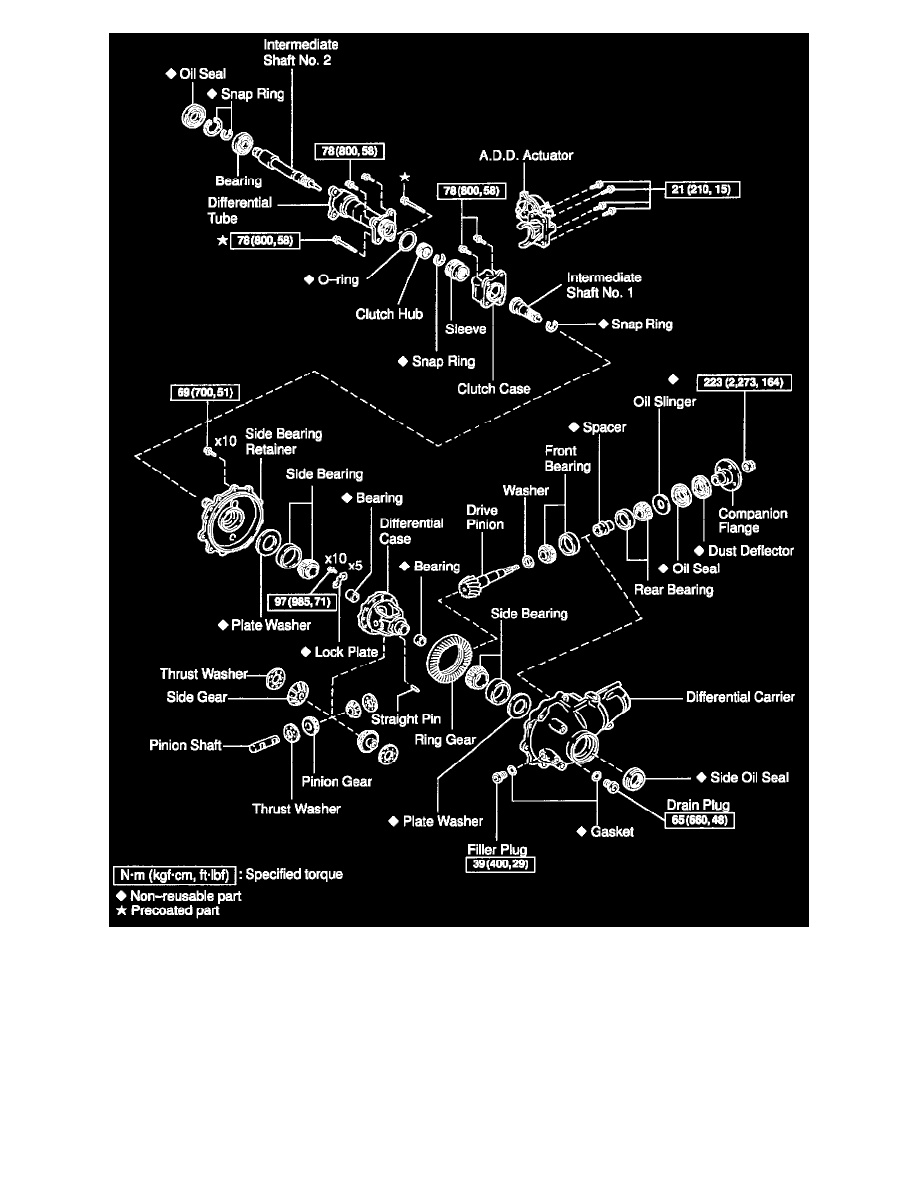

FRONT DIFFERENTIAL CARRIER REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

Transmission and Drivetrain
Differential Assembly
Differential Carrier / Diagrams / Front
Page 3689
