Sequoia 2WD V8-4.7L (2UZ-FE) (2003)
/Page-864002.png)

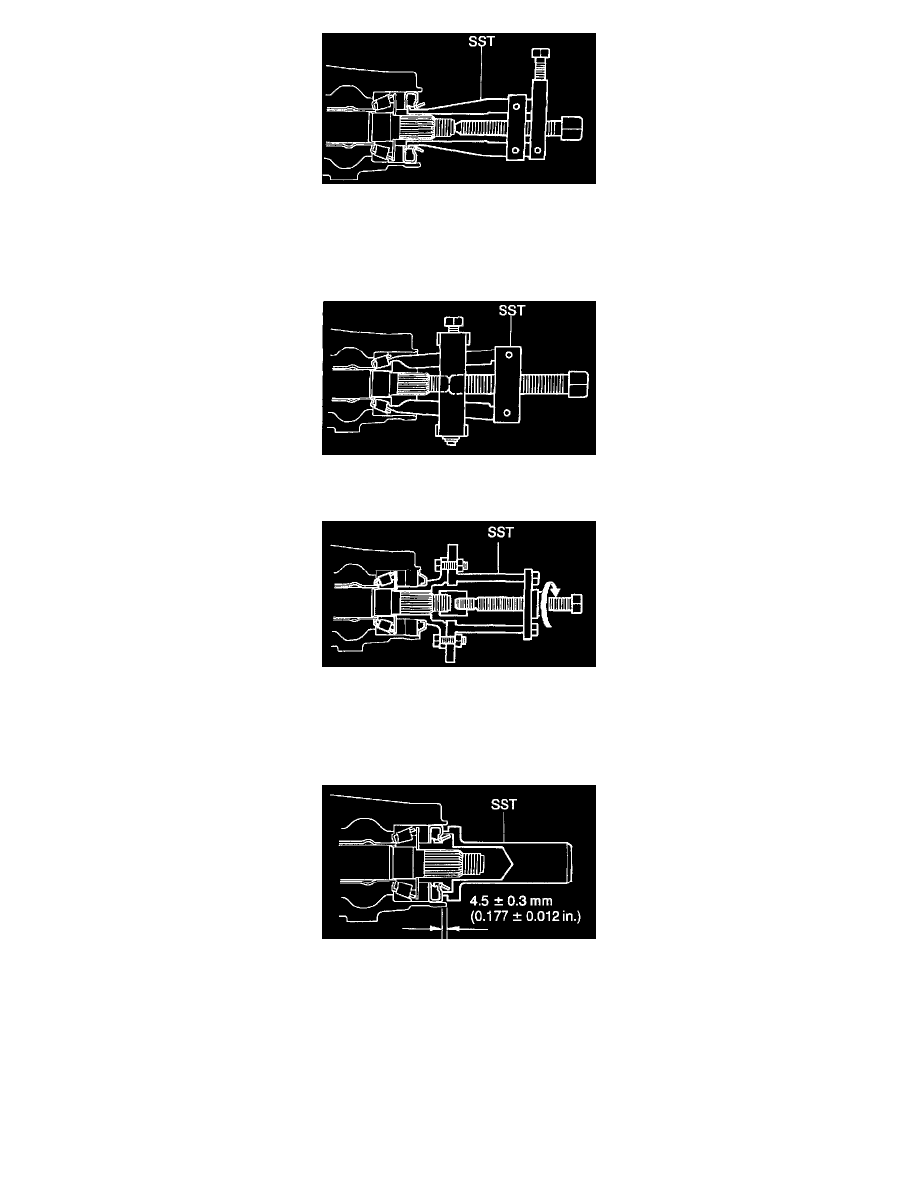

5. REMOVE OIL SEAL AND OIL SLINGER
a. Using SST, remove the oil seal.
SST 09308-10010
b. Remove the oil slinger.
6. REMOVE REAR BEARING AND BEARING SPACER
a. Using SST, remove the rear bearing from the drive pinion.
SST 0955-22010
b. Remove the bearing spacer.
7. INSTALL BEARING SPACER, REAR BEARING AND OIL SLINGER
a. Install a new bearing spacer and place the rear bearing and oil slinger.
b. Using SST and the companion flange, install the rear bearing, then remove the companion flange.
SST 09950-30012 (09951-03010, 09953-03010, 09954-03010, 09955-03030, 09956-03020)
8. INSTALL OIL SEAL
a. Coat a new oil seal lip with MP grease.
b. Using SST and a hammer, install the oil seal.
SST 09554-22010
Oil seal drive in depth: 4.5 ± 0.3 mm (0.177 ± 0.012 inch)
9. INSTALL COMPANION FLANGE
a. Place the companion flange on the drive pinion.
b. Coat the threads of a new nut with hypoid gear oil.
