Sequoia 2WD V8-4.7L (2UZ-FE) (2003)
/Page-865001.png)
Seals and Gaskets: Service and Repair

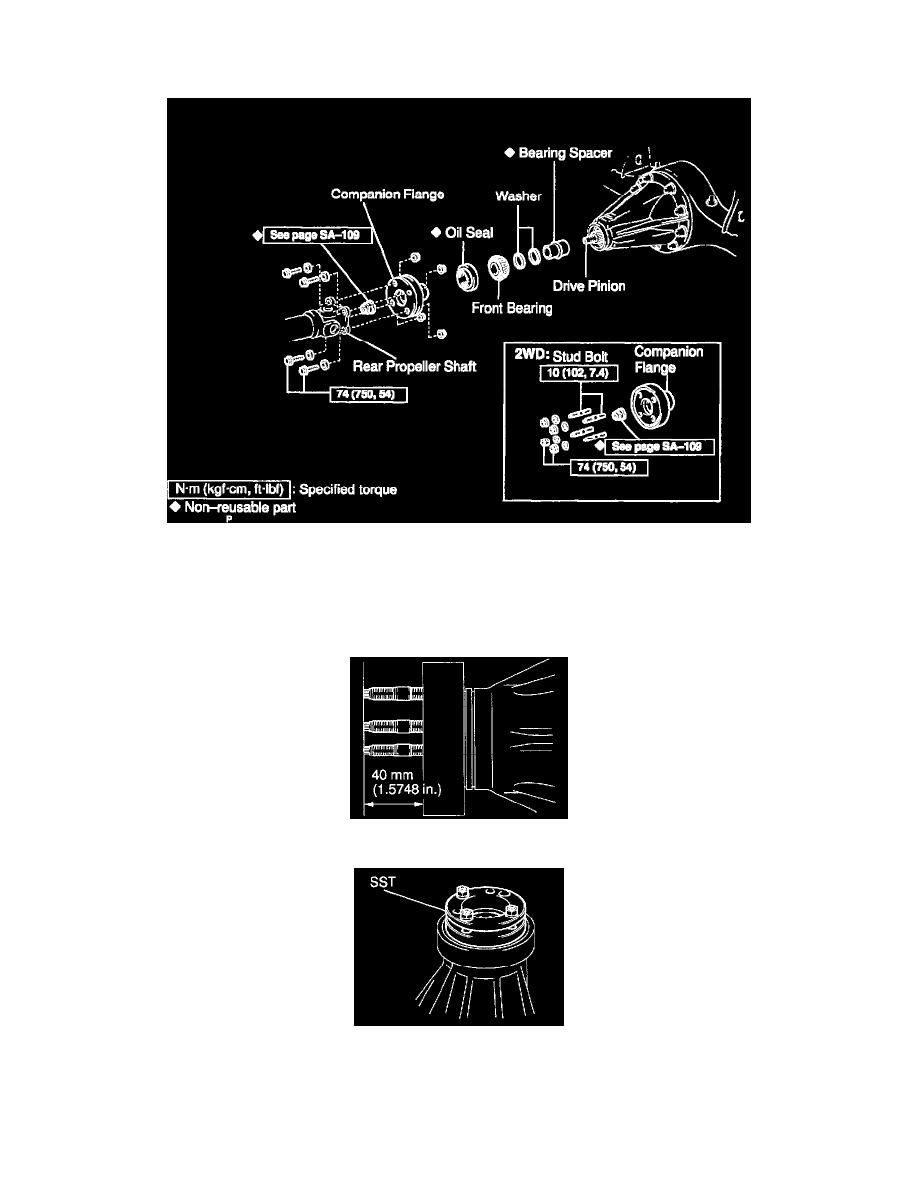

Rear Differential Rear Oil Seal
REPLACEMENT
1. DRAIN DIFFERENTIAL OIL
2. DISCONNECT REAR PROPELLER SHAFT
3. REMOVE COMPANION FLANGE
a. 2WD: Remove the companion flange nut.
1. Using a chisel and hammer, loosen the staked part of the nut.
2. Install the 3 stud bolts to make the heads 40 mm (1.57 inch) out.
3. Set the SST and install the 3 nuts to the companion flange.
SST 09213-58013
