Initial Inspection and Diagnostic Overview|Page 5889 > < Initial Inspection and Diagnostic Overview|Page 5887

Sequoia 4WD V8-4.7L (2UZ-FE) (2006)

Page 33
background image

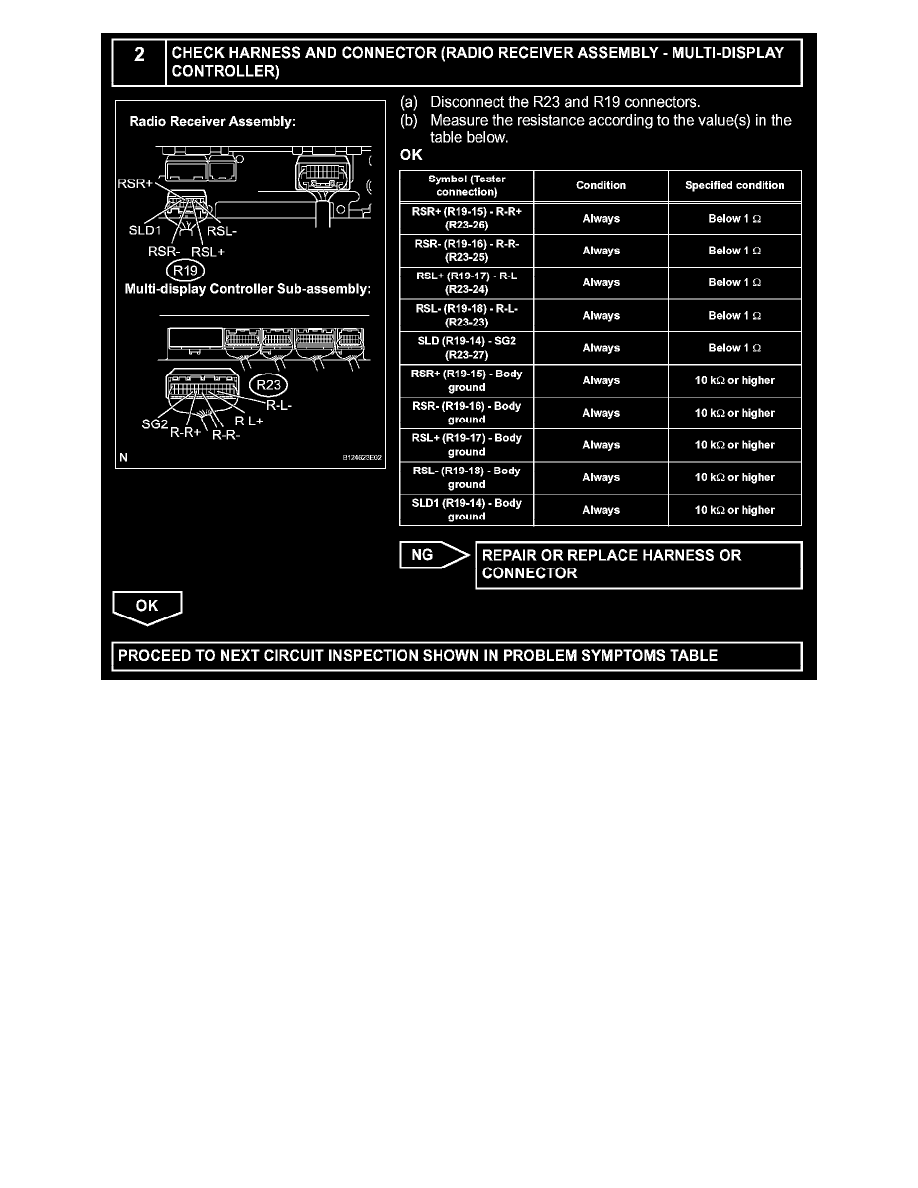

Step 2

INSPECTION PROCEDURE

Sound Signal Circuit Between Video Terminal And Multi-Display Controller

Sound Signal Circuit between Video Terminal and Multi-display Controller

DESCRIPTION
This is the sound signal circuit from the VTR terminal to the multi-display controller sub-assembly.
