Sequoia 4WD V8-4.7L (2UZ-FE) (2006)
/Page-1399023.png)

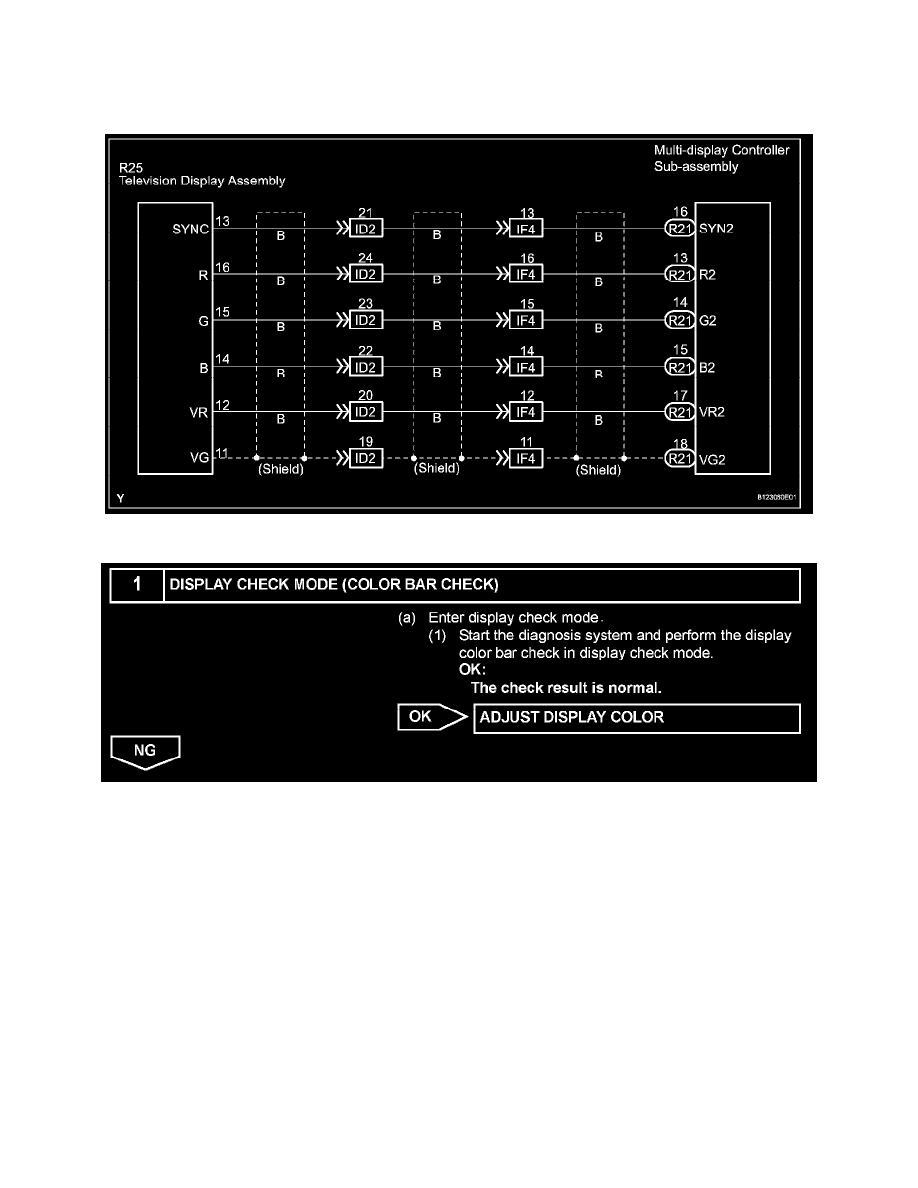

Display Signal Circuit between Multi- display Controller and Television Display
DESCRIPTION
This is the display signal circuit from the multi-display controller sub-assembly to the television display assembly.
Wiring Diagram
Step 1
