Sequoia 4WD V8-4.7L (2UZ-FE) (2006)
/Page-1420008.png)

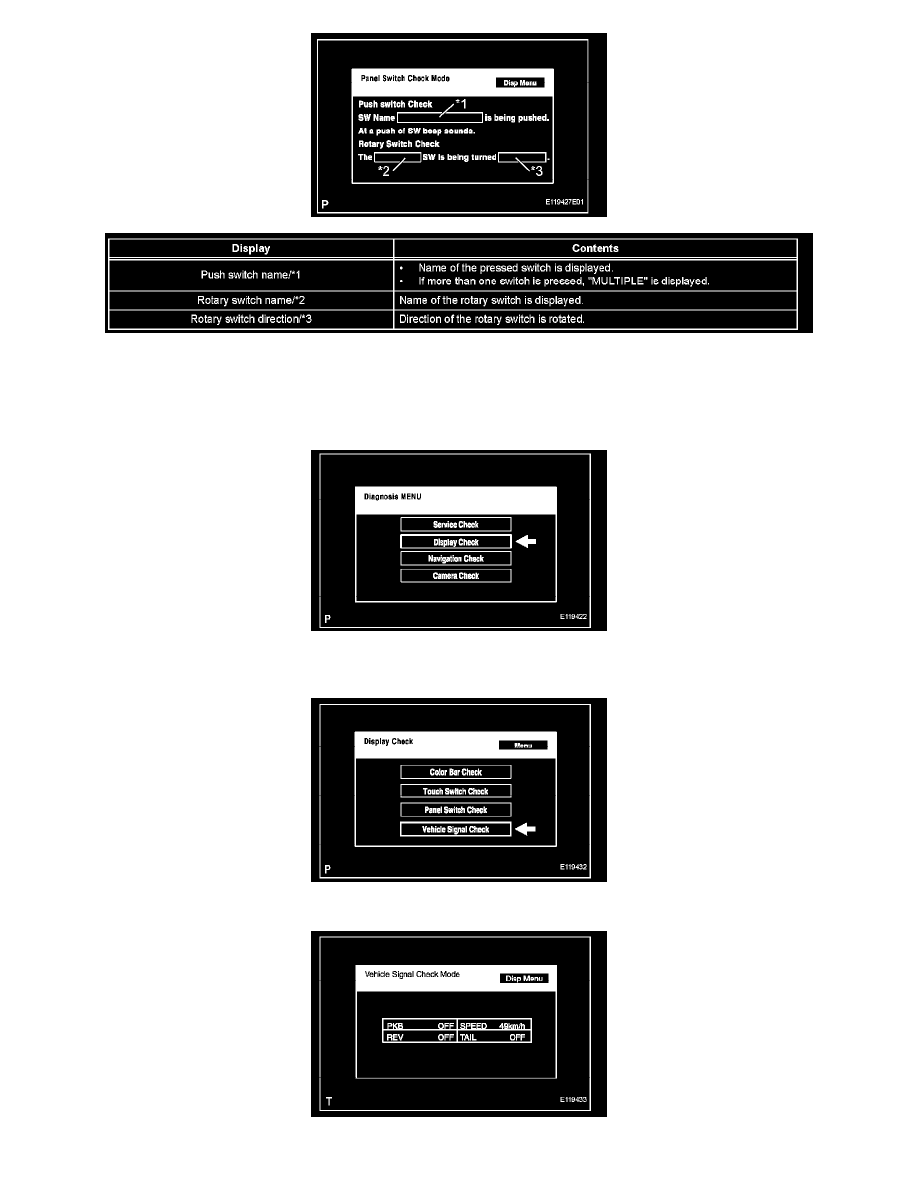

c. Operate each switch and check that the switch name and condition are correctly displayed.
HINT:
-
Pressing the "DISPLAY" switch for 3 seconds will exit the diagnostic mode.
-
"OPEN" and "TILT" switches are not displayed. To test these switches, they must be operated.
5. VEHICLE SIGNAL CHECK
a. Select "Display Check" from the "Diagnosis MENU" screen.
b. Select "Vehicle Signal Check" from the "Display Check" screen.
c. When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.
