Sequoia 4WD V8-4.7L (2UZ-FE) (2006)
/Page-410001.png)

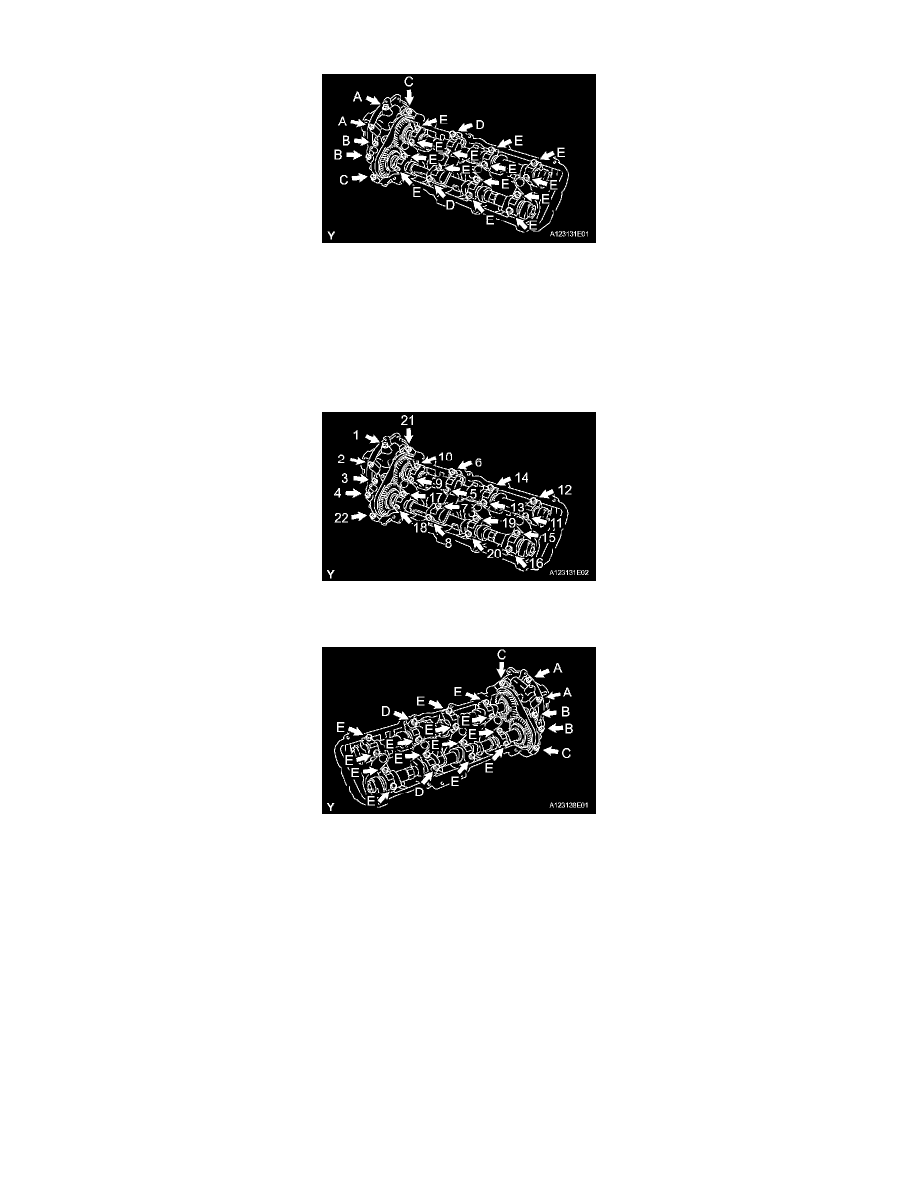

Camshaft Bearing: Specifications
Camshaft Bearing Cap Bolts (LH)
Bolt Lengths
A with seal washer ............................................................................................................................................................................... 94 mm (3.70 inch)
B with seal washer ............................................................................................................................................................................... 72 mm (2.83 inch)
C ........................................................................................................................................................................................................... 25 mm (0.98 inch)
D ........................................................................................................................................................................................................... 52 mm (2.05 inch)
E ............................................................................................................................................................................................................ 38 mm (1.50 inch)
Bolt C ............................................................................................................................................................................. 7.5 Nm (76 kgf-cm, 66 inch lbs.)
Others ............................................................................................................................................................................... 16 Nm (160 kgf-cm, 12 ft. lbs.)
Camshaft Bearing Cap Bolts (RH)
Bolt Lengths
A with seal washer ............................................................................................................................................................................... 94 mm (3.70 inch)
B with seal washer ............................................................................................................................................................................... 72 mm (2.83 inch)
C ........................................................................................................................................................................................................... 25 mm (0.98 inch)
D ........................................................................................................................................................................................................... 52 mm (2.05 inch)
E ............................................................................................................................................................................................................ 38 mm (1.50 inch)
