Sequoia 4WD V8-4.7L (2UZ-FE) (2006)
/Page-440001.png)
Oil Pan: Specifications

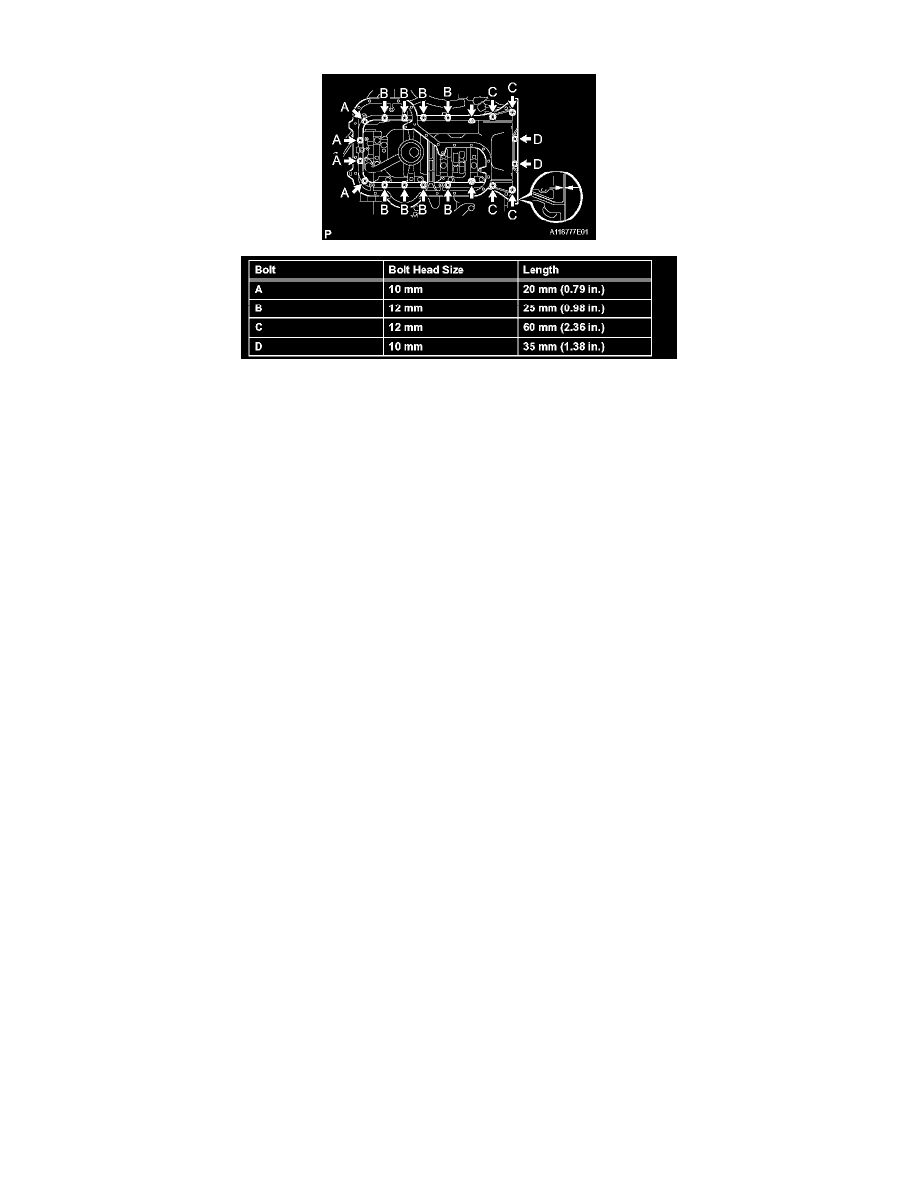

Bolt Length
No. 1 Oil Pan Bolts
10 MM Head .................................................................................................................................................................. 7.5 Nm (76 kgf-cm, 66 inch lbs.)
12 MM Head .................................................................................................................................................................... 28 Nm (290 kgf-cm, 21 ft. lbs.)
No. 2 Oil Pan Bolts And Nuts ............................................................................................................................................ 7.5 Nm (76 kgf-cm, 66 inch lbs.)
