Sequoia 4WD V8-4.7L (2UZ-FE) (2006)

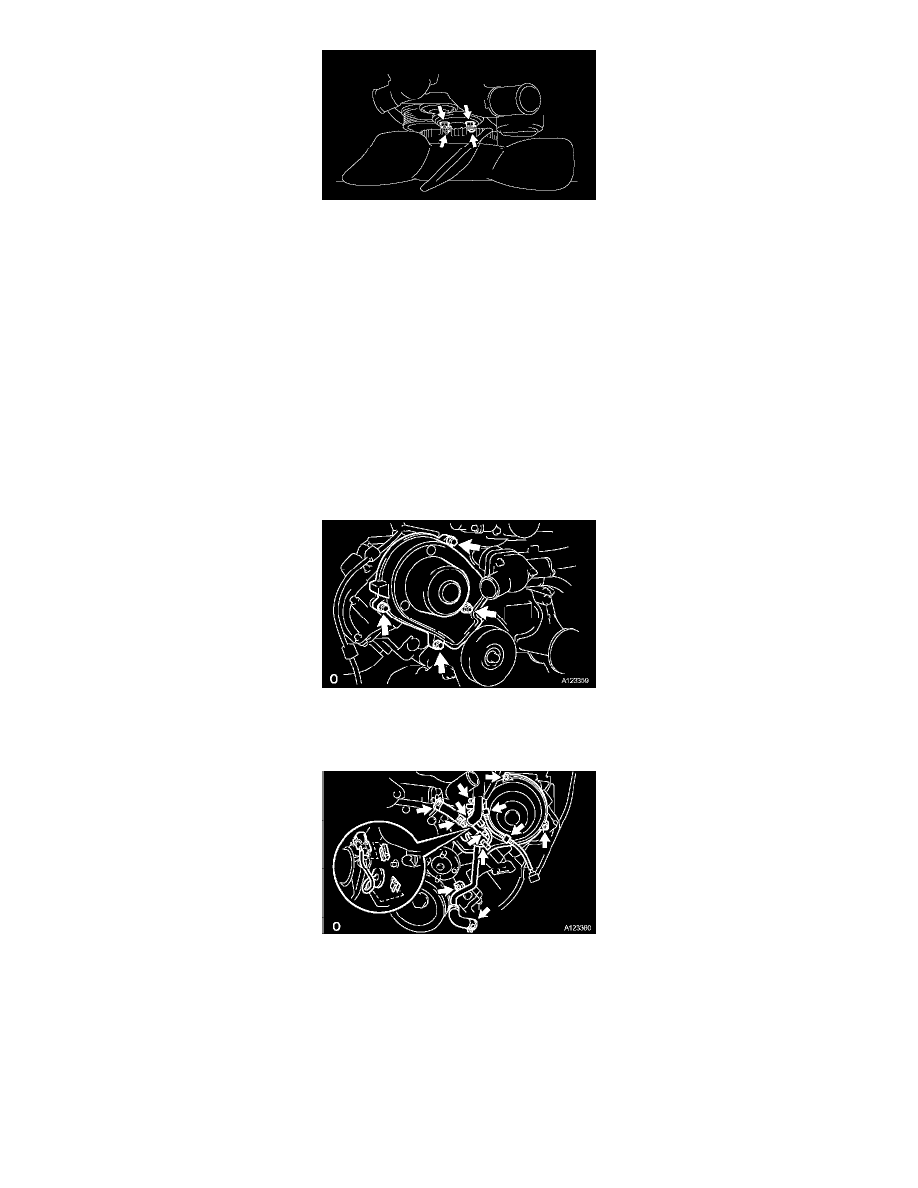

a) Loosen the 4 nuts holding the fluid coupling to the fan bracket.
b) Remove the drive belt.
7. REMOVE FAN
8. REMOVE FLUID COUPLING
9. REMOVE FAN PULLEY
a) Remove the 4 nuts, the fan, fluid coupling assembly and fan pulley.
10. DISCONNECT PS PUMP
a) Remove the 3 bolts, and disconnect the PS pump from the engine.
HINT: Suspend the PS pump securely.
11. REMOVE DRIVE BELT IDLER PULLEY
a) Remove the pulley bolt, cover plate and idler pulley.
12. REMOVE RH NO. 3 TIMING BELT COVER
a) Remove the 3 bolts, nut and RH No.3 timing belt cover.
13. REMOVE LH NO. 3 TIMING BELT COVER
a) Disconnect the engine wire from the 2 wire clamps.
b) Remove the 4 bolts and nut.
c) Disconnect the camshaft position sensor wire from the wire clamp on the LH No. 3 timing belt cover.
d) Disconnect the camshaft position sensor connector from the connector bracket.
e) Disconnect the camshaft position sensor connector.
f) Remove the wire grommet from the LH No. 3 timing belt cover.
g) Remove the LH No. 3 timing belt cover.
h) Remove the bolt, nut and oil cooler pipe.
14. REMOVE NO. 2 TIMING BELT COVER
