Sequoia 4WD V8-4.7L (2UZ-FE) (2006)
/Page-1248001.png)
Condenser Fan: Service and Repair
Removal And Installation
REMOVAL

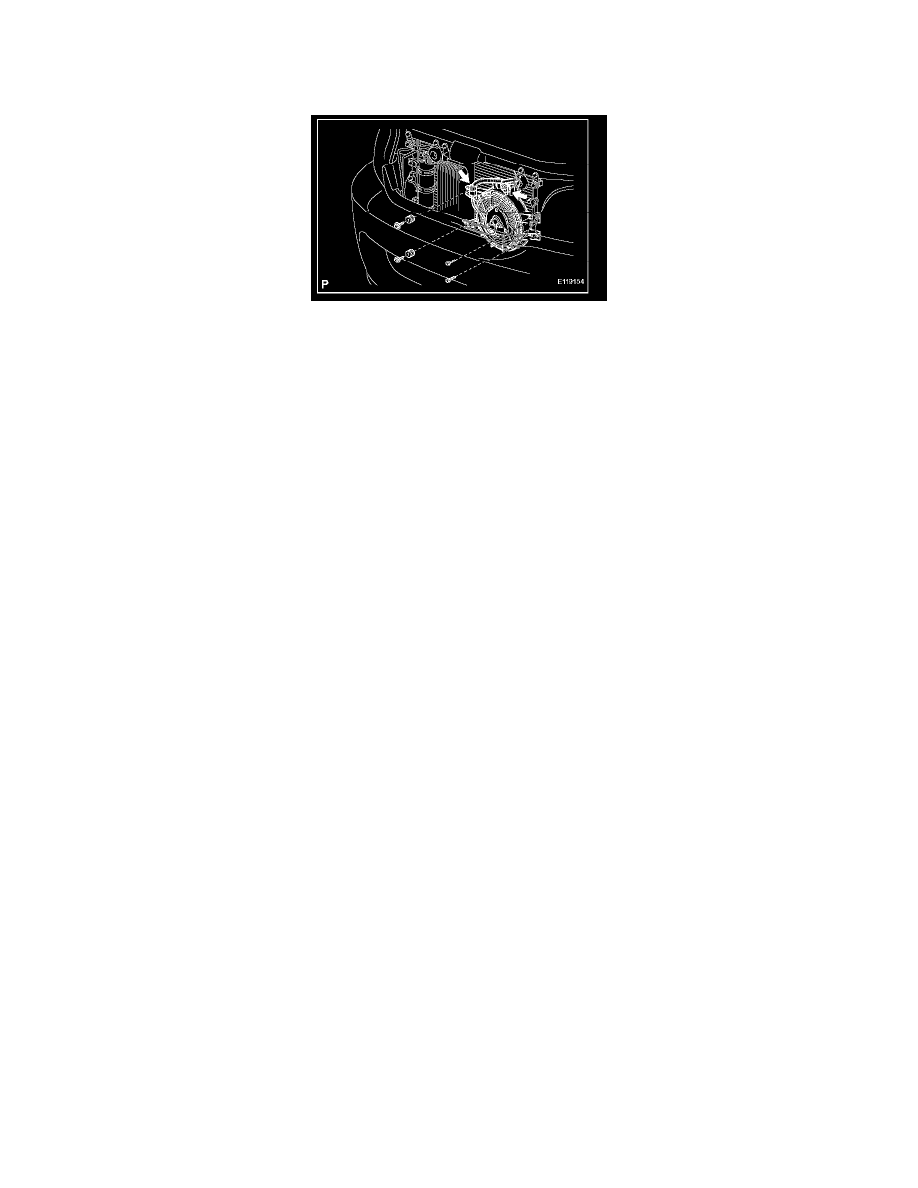

1. REMOVE CONDENSER FAN
a. Disconnect the 2 connectors.
b. Disconnect the wire harness clamp.
c. Remove the ambient temperature sensor.
d. Remove the 4 bolts and condenser fan with the fan shroud.
INSTALLATION
Reassembly is in the reverse order of disassembly.
