Hose/Line HVAC: Diagrams

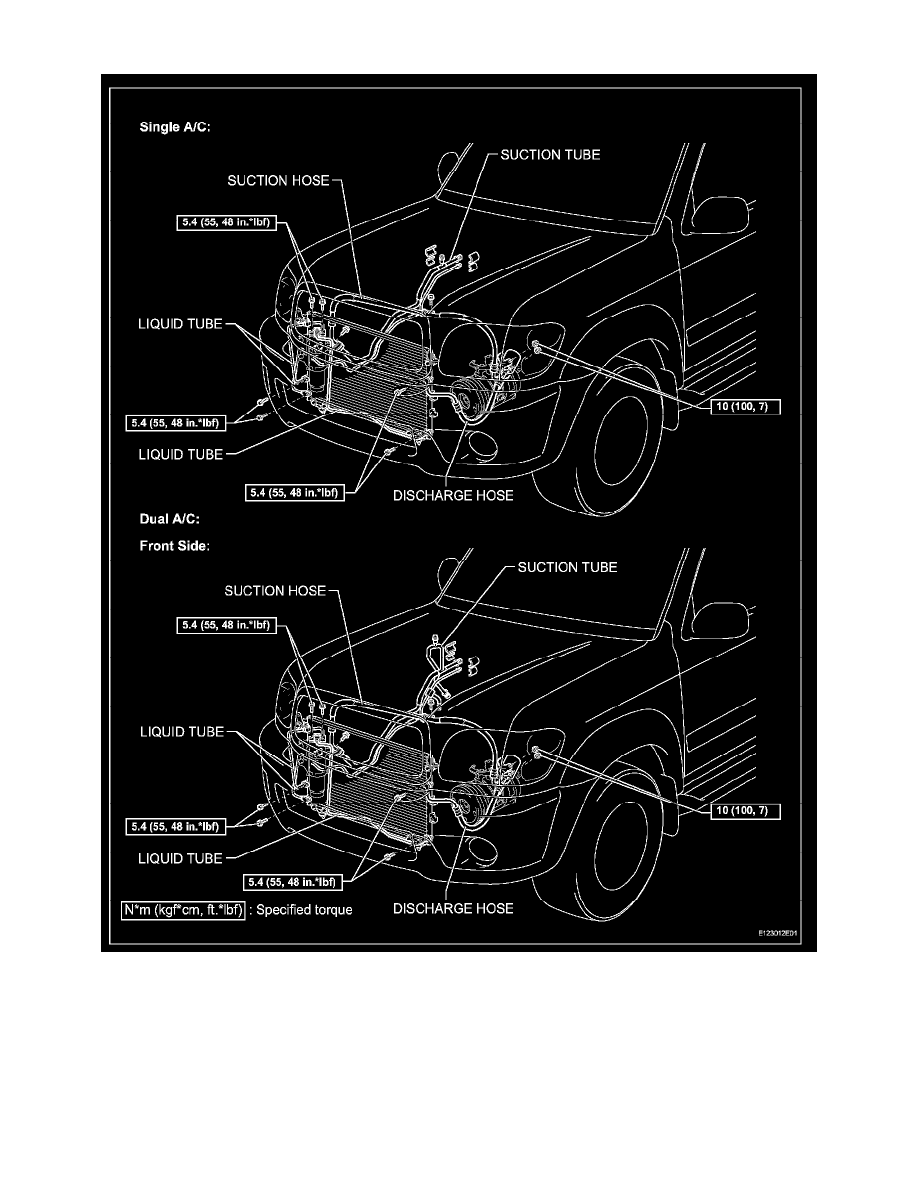

Refrigerant Line

Heating and Air Conditioning
Hose/Line HVAC
Component Information
Diagrams
