Backup Lamp Relay|Locations|Page 7297 > < Diagram Information and Instructions|Page 7292

Sequoia 4WD V8-4.7L (2UZ-FE) (2006)

  • Lighting and Horns
  • Relays and Modules - Lighting and Horns
  • Backup Lamp Relay
  • Component Information
  • Locations

Page 1
background image

Backup Lamp Relay: Locations

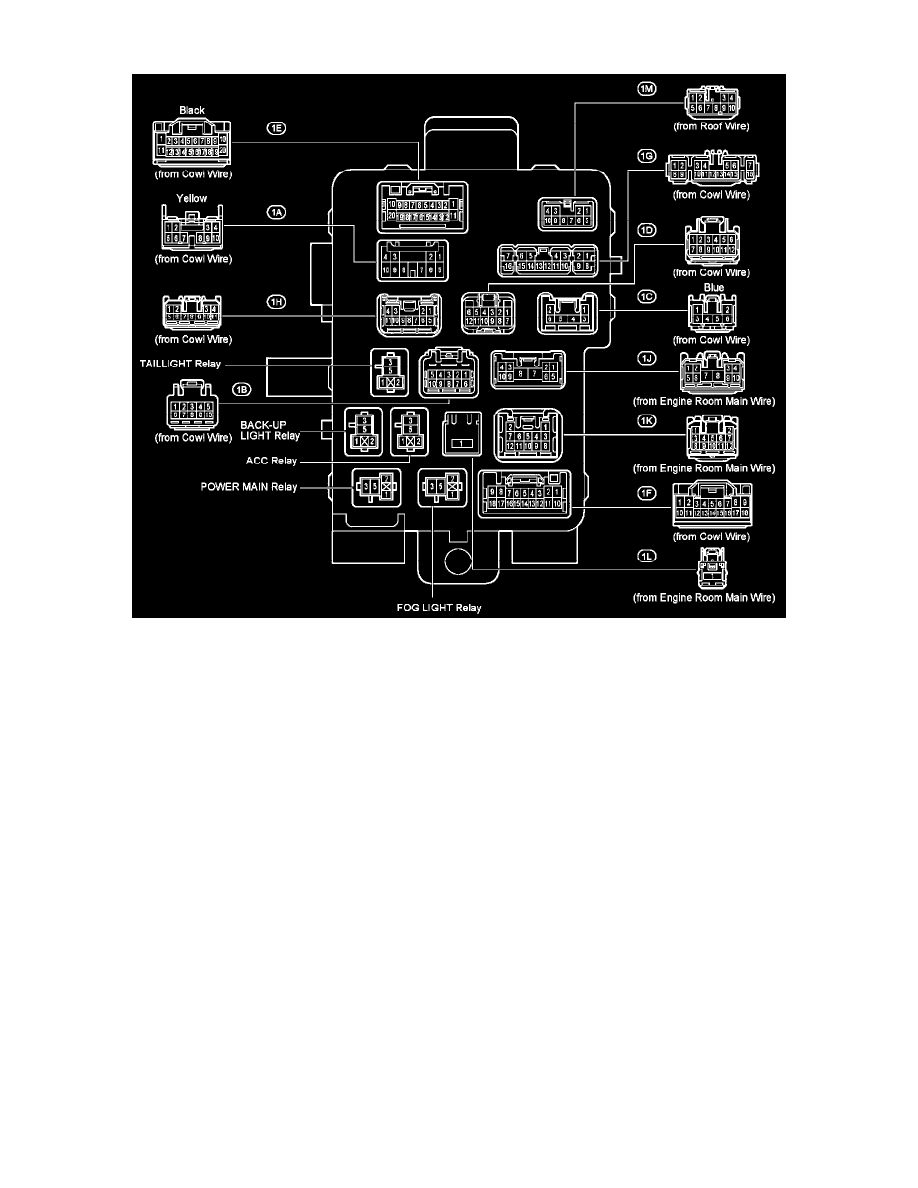

Instrument Panel J/B - Lower Finish Panel

  • Lighting and Horns
  • Relays and Modules - Lighting and Horns
  • Backup Lamp Relay
  • Component Information
  • Locations

Backup Lamp Relay|Locations|Page 7297 > < Diagram Information and Instructions|Page 7292
