Sequoia 4WD V8-4.7L (2UZ-FE) (2006)
/Page-734001.png)
Air Injection Pump: Testing and Inspection
INSPECTION
1. INSPECT AIR PUMP

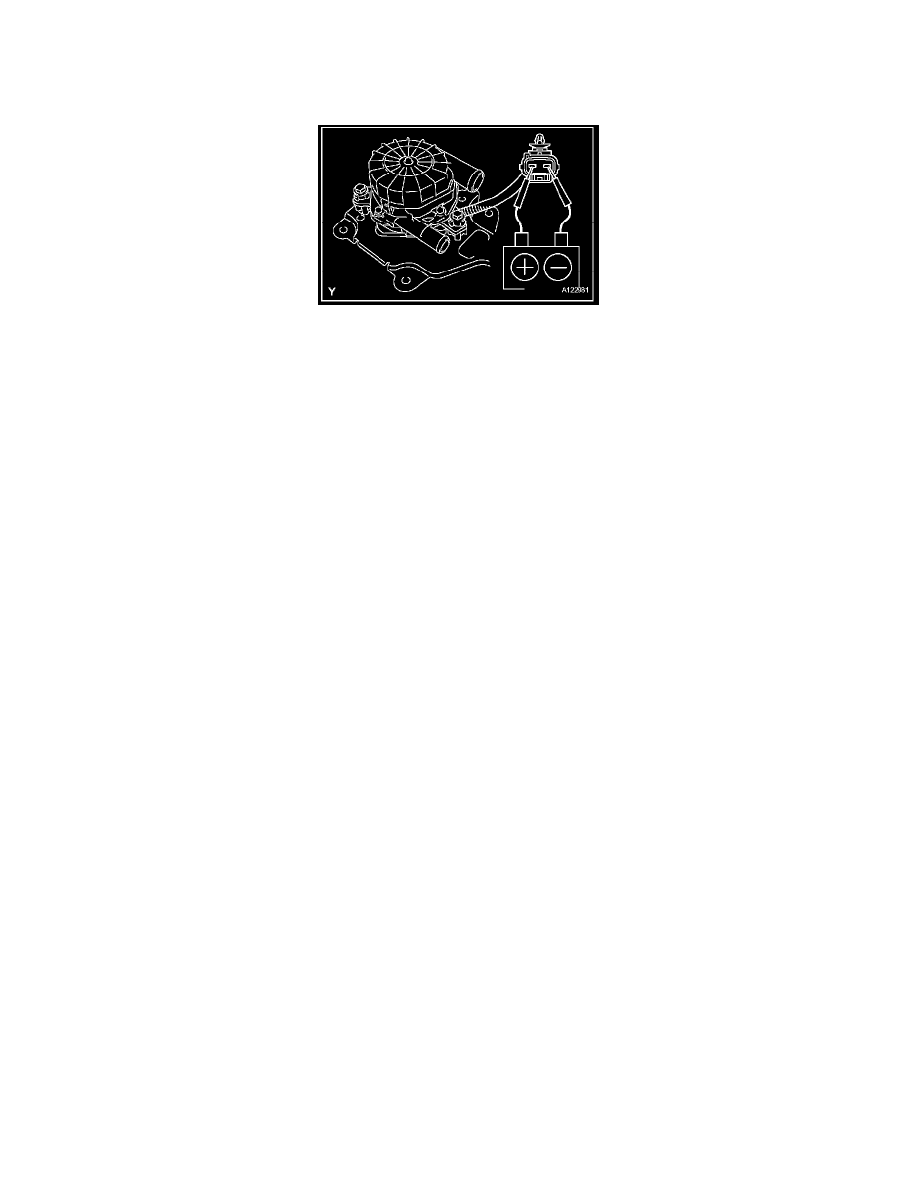

a. Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, and check that air flows.
If operation is not as specified, replace the air pump.
