Sequoia 4WD V8-4.7L (2UZ-FE) (2006)
/Page-262002.png)

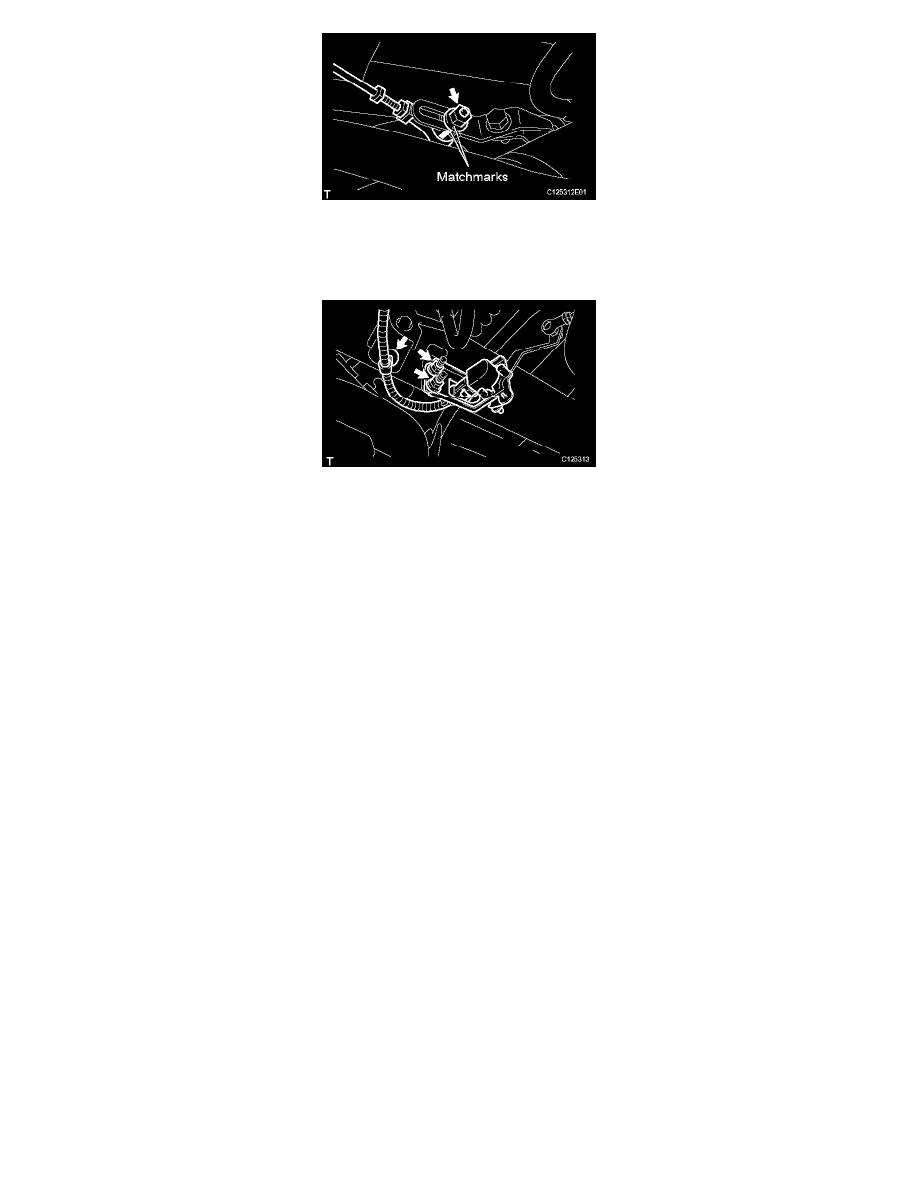

2. DISCONNECT HEIGHT CONTROL SENSOR LINK
a. Put matchmarks on the height control sensor link and bracket.
b. Remove the nut and disconnect the sensor link.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
3. REMOVE REAR HEIGHT CONTROL SENSOR LH
a. Disconnect the wire harness clamp.
b. Remove the 2 bolts and rear height control sensor.
Torque: 29 Nm (300 kgf-cm, 21 ft. lbs.)
INSTALLATION
Installation is in the reverse order of removal.
