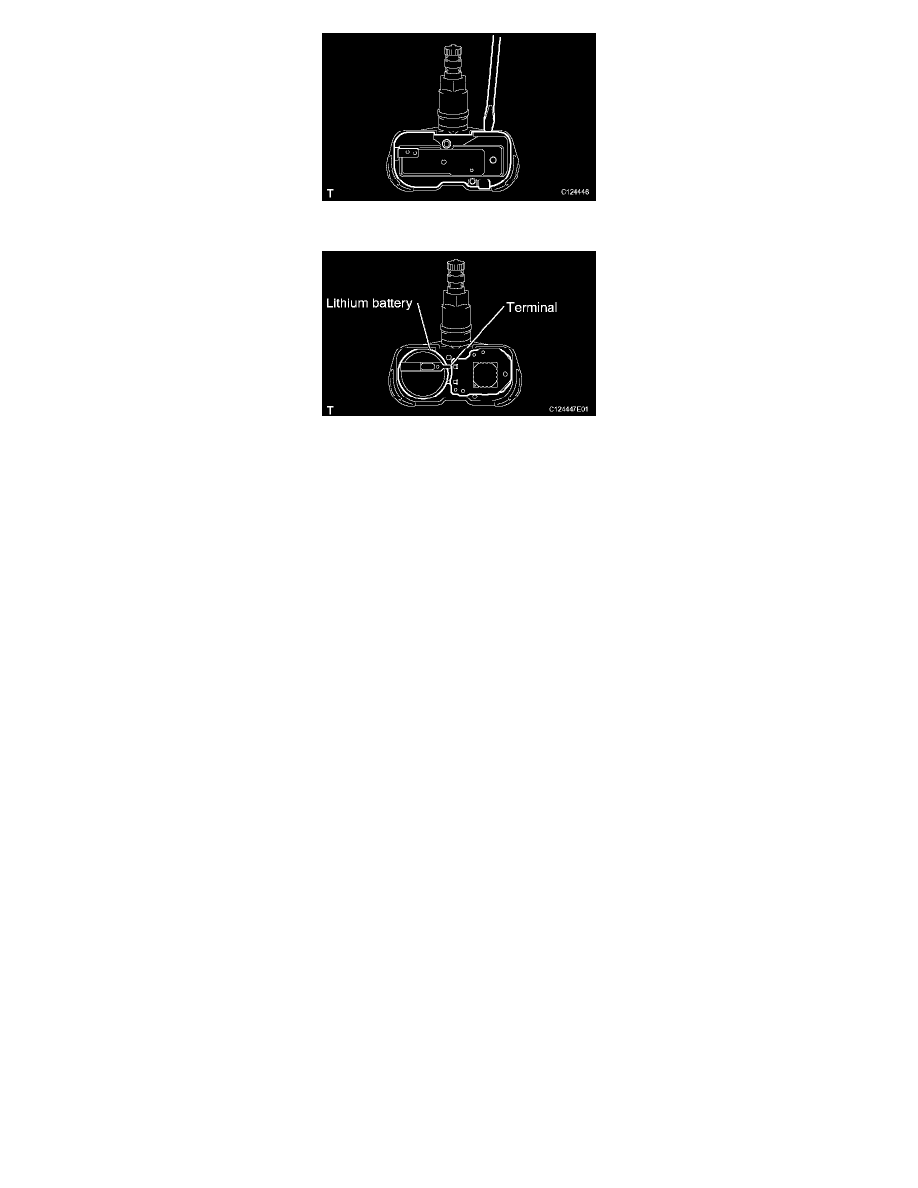

a. Insert the tip of a screwdriver into the clearance and pry off the cover. Remove the back cover.

b. The battery and base board covered with silicone resin are exposed. While taking out the battery, cut off the 2 terminals which connect the

battery and base board.
