Sequoia 4WD V8-4.7L (2UZ-FE) (2006)
/Page-884001.png)
Seals and Gaskets: Service and Repair
Rear Differential Carrier Oil Seal
REAR DIFFERENTIAL CARRIER OIL SEAL

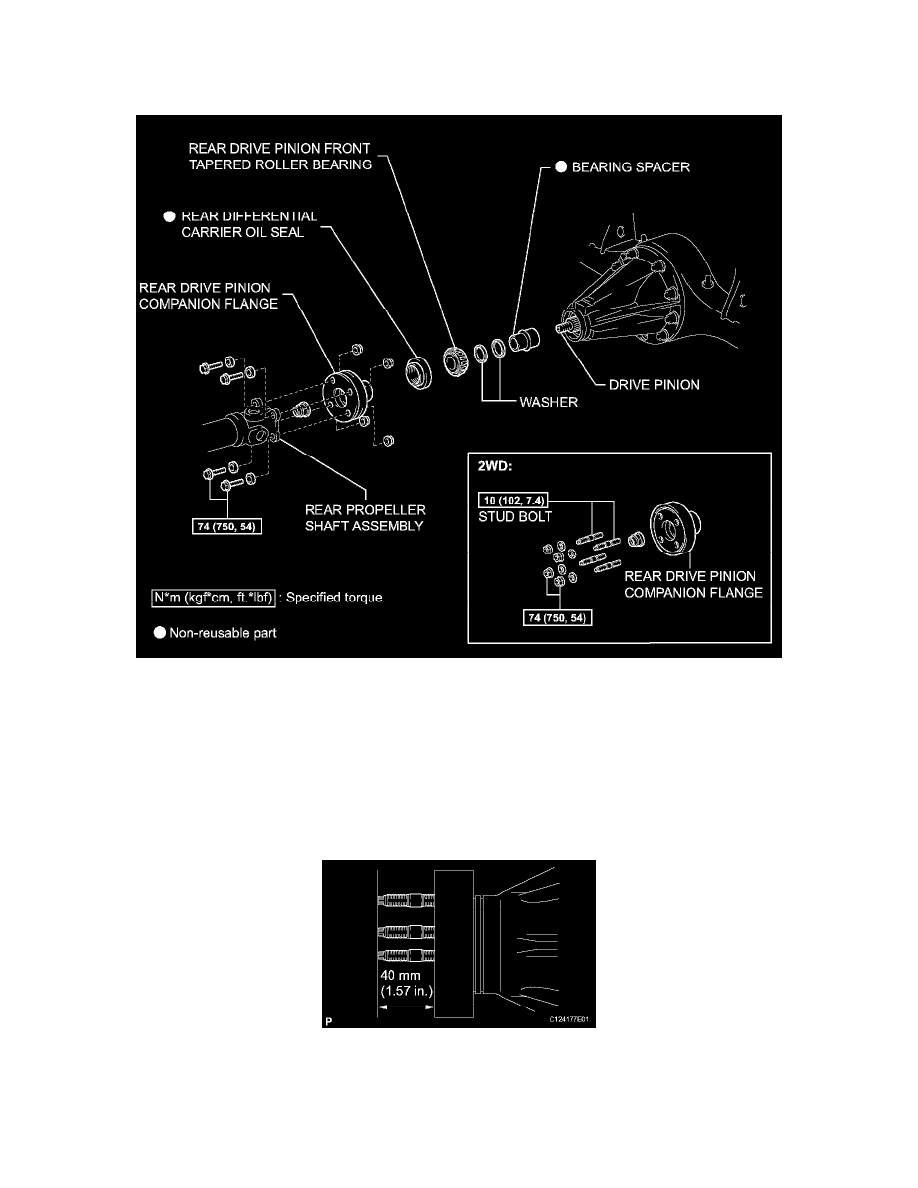

Components
REPLACEMENT
1. DRAIN DIFFERENTIAL OIL
2. DISCONNECT REAR PROPELLER SHAFT ASSEMBLY
a. Disconnect the rear propeller shaft assembly
3. REMOVE REAR DRIVE PINION COMPANION FLANGE
a. 2WD: Remove the companion flange nut.
1. Using a chisel and hammer, loosen the staked part of the nut.
2. Install the 3 stud bolts so that the heads come out 40 mm (1.57 inch).
