Sienna FWD V6-3.5L (2GR-FE) (2009)
/Page-478001.png)
Coolant: Service and Repair
2GR-FE COOLING: COOLANT: REPLACEMENT
REPLACEMENT
1. REMOVE NO. 1 ENGINE UNDER COVER See: Engine, Cooling and Exhaust/Engine/Service and Repair/Removal and Replacement/Removal
2. REMOVE V-BANK COVER SUB-ASSEMBLY See: Engine, Cooling and Exhaust/Engine/Service and Repair/Removal and
Replacement/Removal

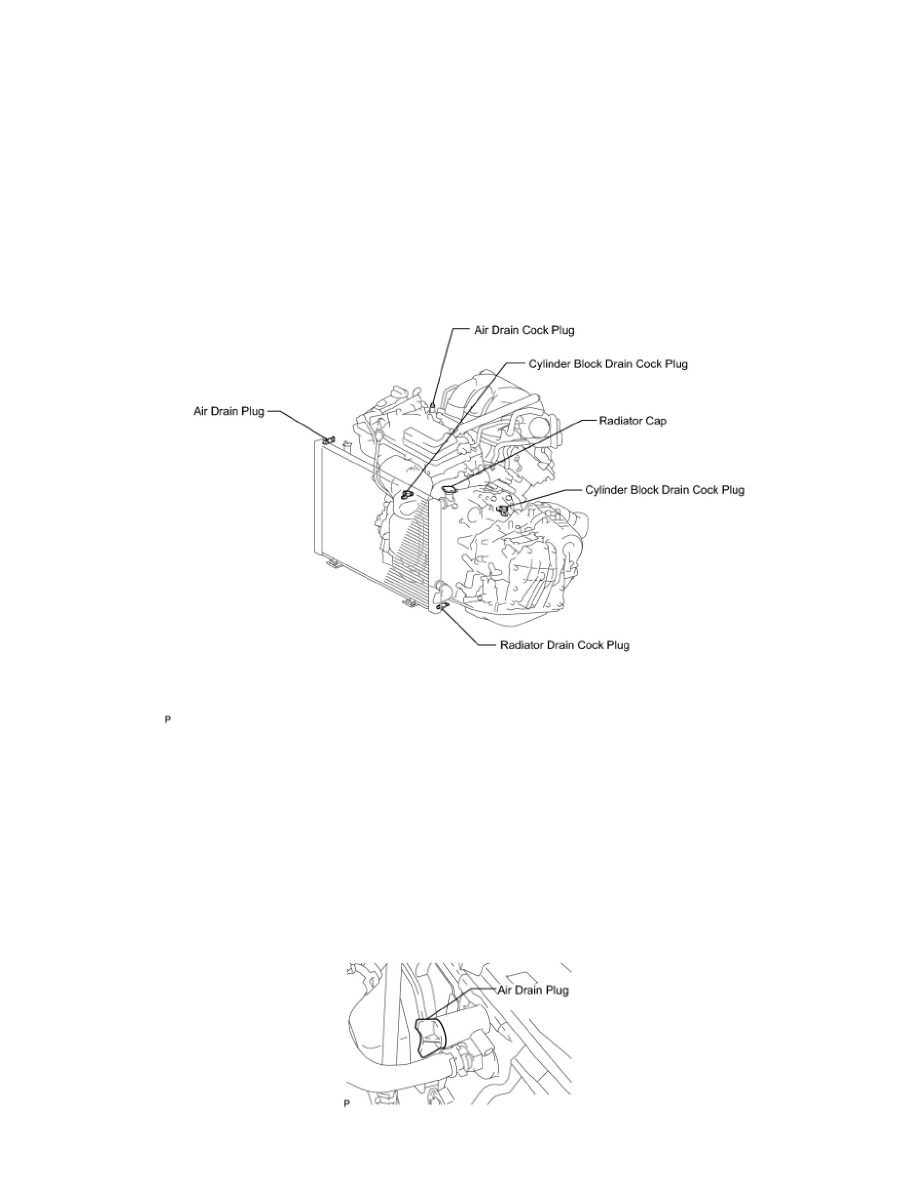

3. DRAIN ENGINE COOLANT
(a) Loosen the radiator drain cock plug.
HINT: Collect the coolant in a container and dispose of it according to the regulations in your area.
(b) Remove the radiator cap sub-assembly from the radiator assembly.
NOTICE: Do not remove the radiator cap sub-assembly while the engine and radiator are still hot. Pressurized, hot engine coolant and steam
may be released and cause serious burns.
(c) Loosen the 2 cylinder block drain cock plugs.
4. ADD ENGINE COOLANT
(a) Tighten the radiator drain cock plug by hand.
(b) Tighten the 2 cylinder block drain cock plugs.
Torque: 13 Nm (130 kgf-cm, 9ft-lbf) for cylinder block drain cock plugs
(c) Remove the air drain cock plug from the water inlet housing.
(d) Loosen the air drain plug at the top of the radiator 3 or 4 turns.
