T100 Pickup 4WD V6-180.5 2959cc 3.0L SOHC (3VZ-E) (1993)
Brakes and Traction Control
Antilock Brakes / Traction Control Systems
Electronic Brake Control Module / Component Information
Testing and Inspection / Standard Values of ECU Terminals
Page 3494
Page 11

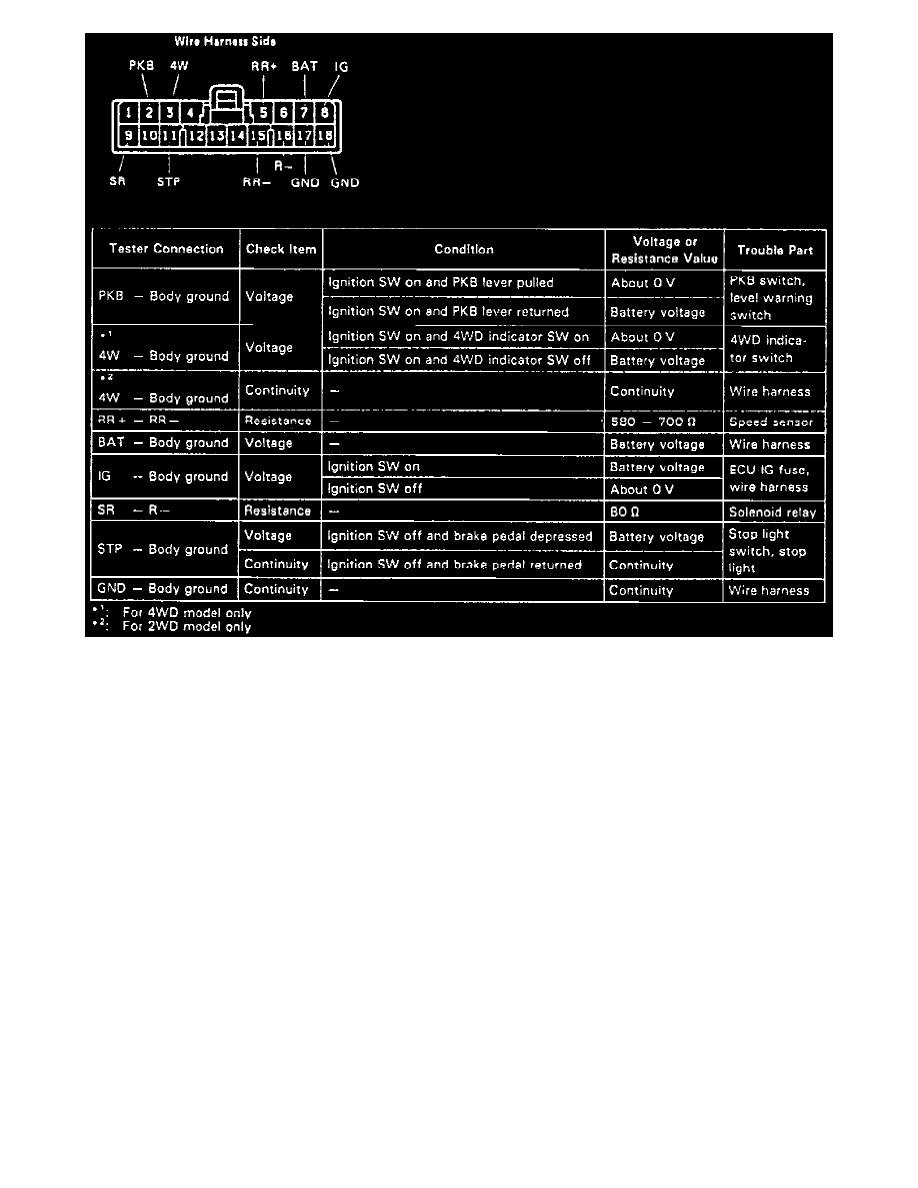

Fig. 184 Anti-lock Brake System Circuit Test (w/computer Connector Connected).
Brakes and Traction Control
Antilock Brakes / Traction Control Systems
Electronic Brake Control Module / Component Information
Testing and Inspection / Standard Values of ECU Terminals
Page 3494
