T100 Pickup 4WD V6-180.5 2959cc 3.0L SOHC (3VZ-E) (1993)
Piston Pin: Service and Repair

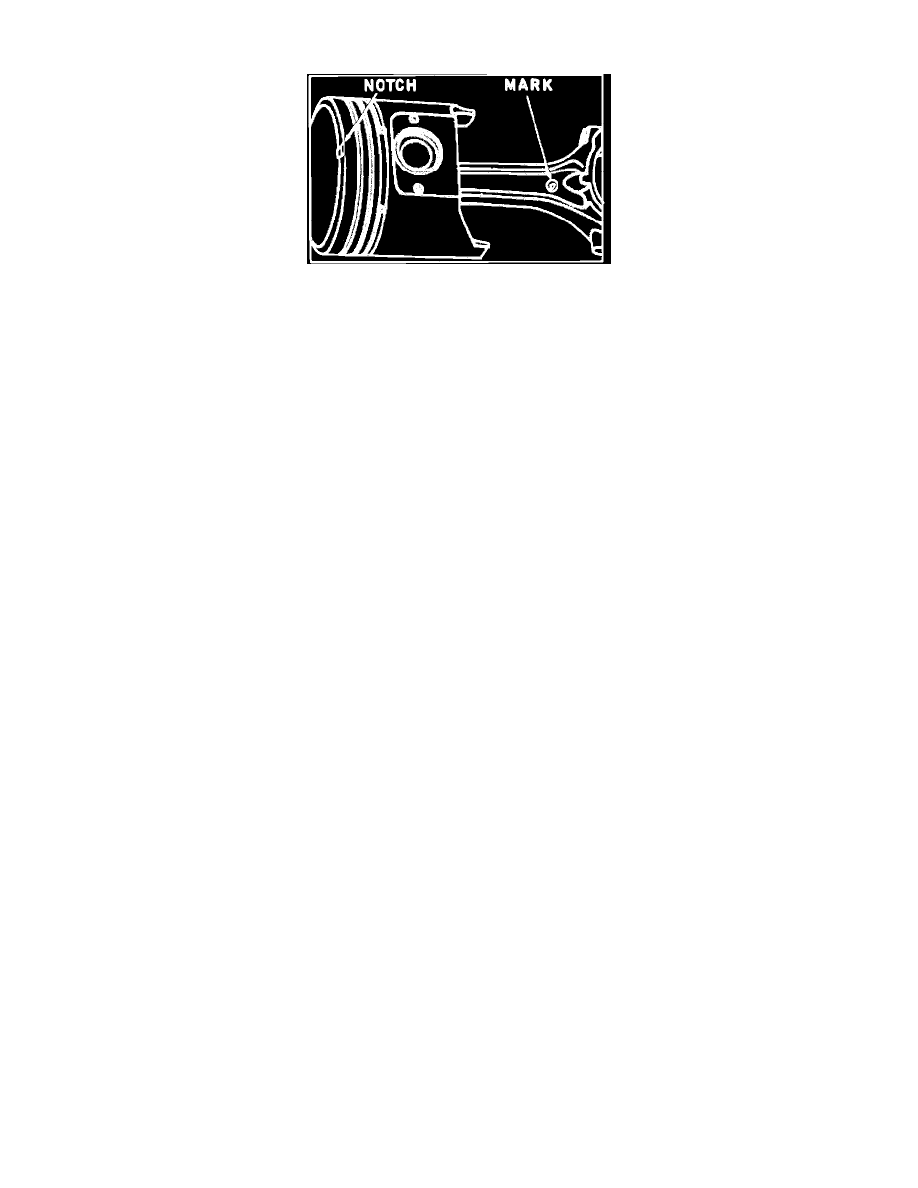

Fig. 8 Piston & Connecting Rod Assembly
Pistons are available in standard and oversize of .020 inch (.50mm). When assembling piston onto connecting rod, ensure mark on top of piston and
mark on connecting rod are on same side, Fig. 8. When installing piston and connecting rod assembly, ensure mark on top of piston is facing toward
front of engine. When tightening connecting rods, ensure bolt does not rotate inside rod as this will result in lower torque than specified.
