T100 Pickup 4WD V6-180.5 2959cc 3.0L SOHC (3VZ-E) (1993)
Intake Manifold: Service and Repair
Installation

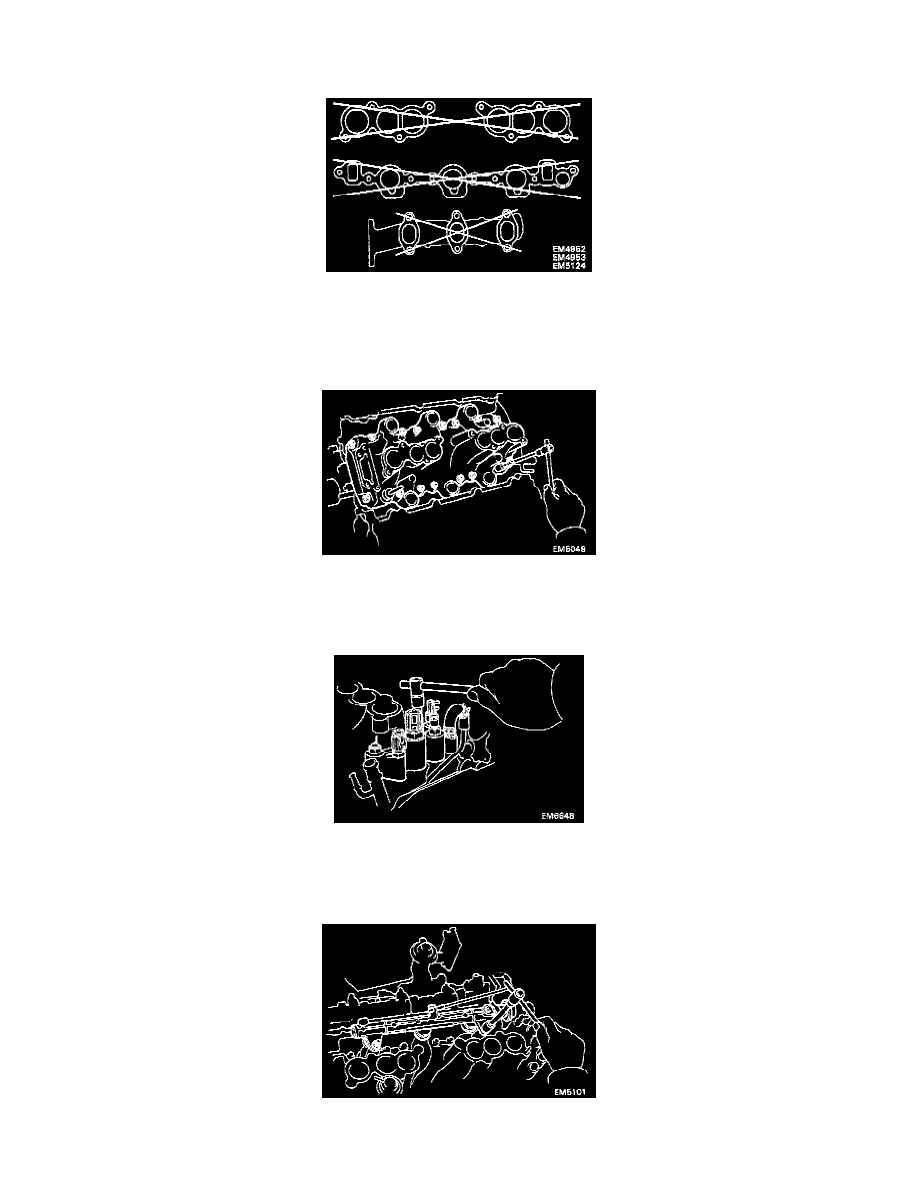

Inspecting Intake & Exhaust Manifolds And Air Intake Chamber
Note:
Before installing intake manifold, make sure the maximum warpage does not exceed 0.10 mm (0.0039 in). If it does, replace the manifold.
1.
Position two new gaskets on the RH and LH cylinder heads.
Intake Manifold
2.
Install the intake manifold with the twelve bolts and four nuts, and torque to 18 Nm (13 ft lb).
3.
Position a new gasket on the intake manifold for the water-by pass outlet.
Water By-Pass Outlet
4.
Install the water by-pass outlet with the two bolts and torque to 18 Nm (13 ft lb).
5.
Connect the No. 3 water by-pass hose to the No. 1 water by-pass hose.
Delivery Pipe And Injectors
