T100 Pickup 4WD V6-180.5 2959cc 3.0L SOHC (3VZ-E) (1993)
/Page-203009.png)

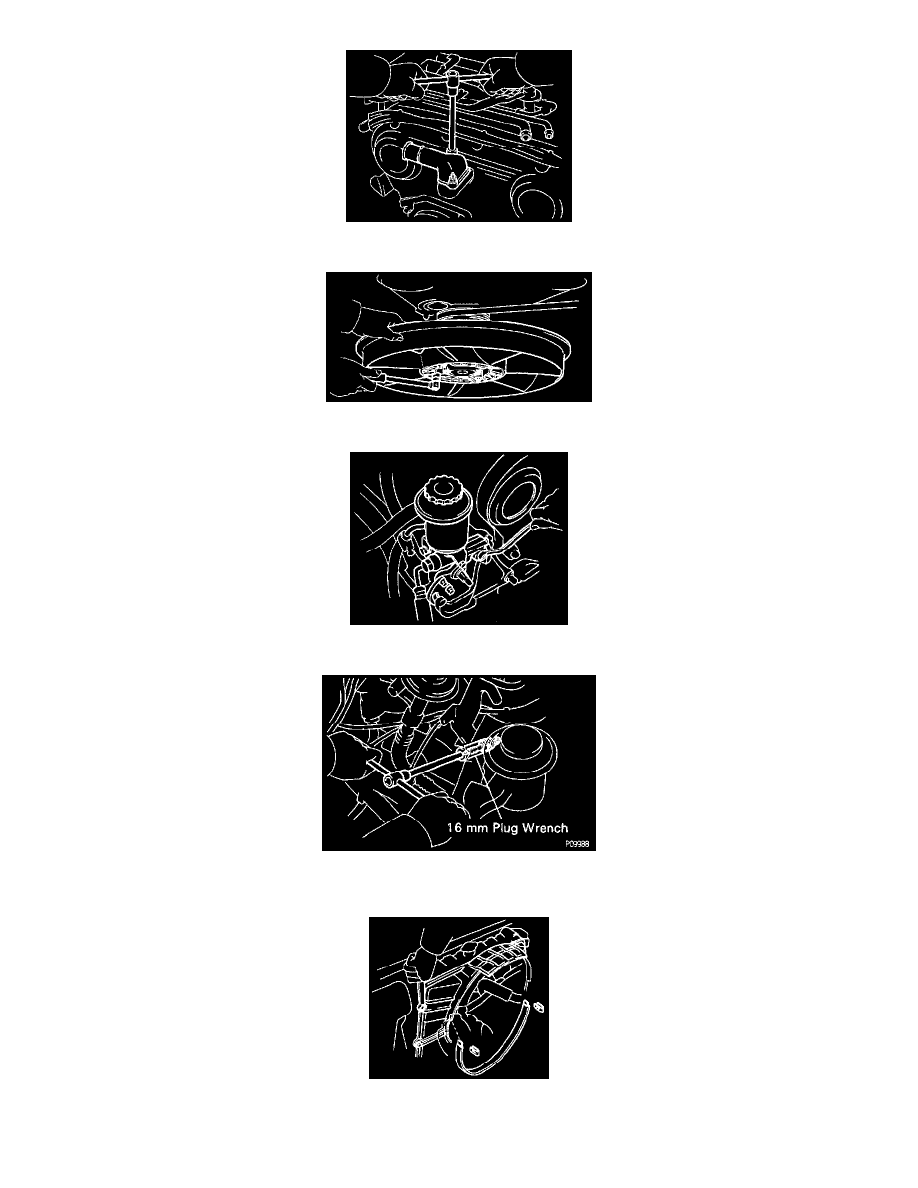

49. Install the water outlet with the two bolts and alternately torque them down to 8.3 Nm (73 in.lbs). Install the generator drive belt.
50. Install the cooling fan with the four nuts and torque to 5.4 Nm (48 in.lbs). Install the A/C drive belt.
51. Install the P/S pump, pulley and drive belt.
52. Using a 16mm plug wrench, install the spark plugs and torque to 18 Nm (13 ft.lbs) and connect spark plug cables.
53. Install the radiator with the four mount bolts.
54. install the No.1 fan shroud and No.2 fan shroud.
