T100 Pickup 4WD V6-180.5 2959cc 3.0L SOHC (3VZ-E) (1993)
/Page-790002.png)
^

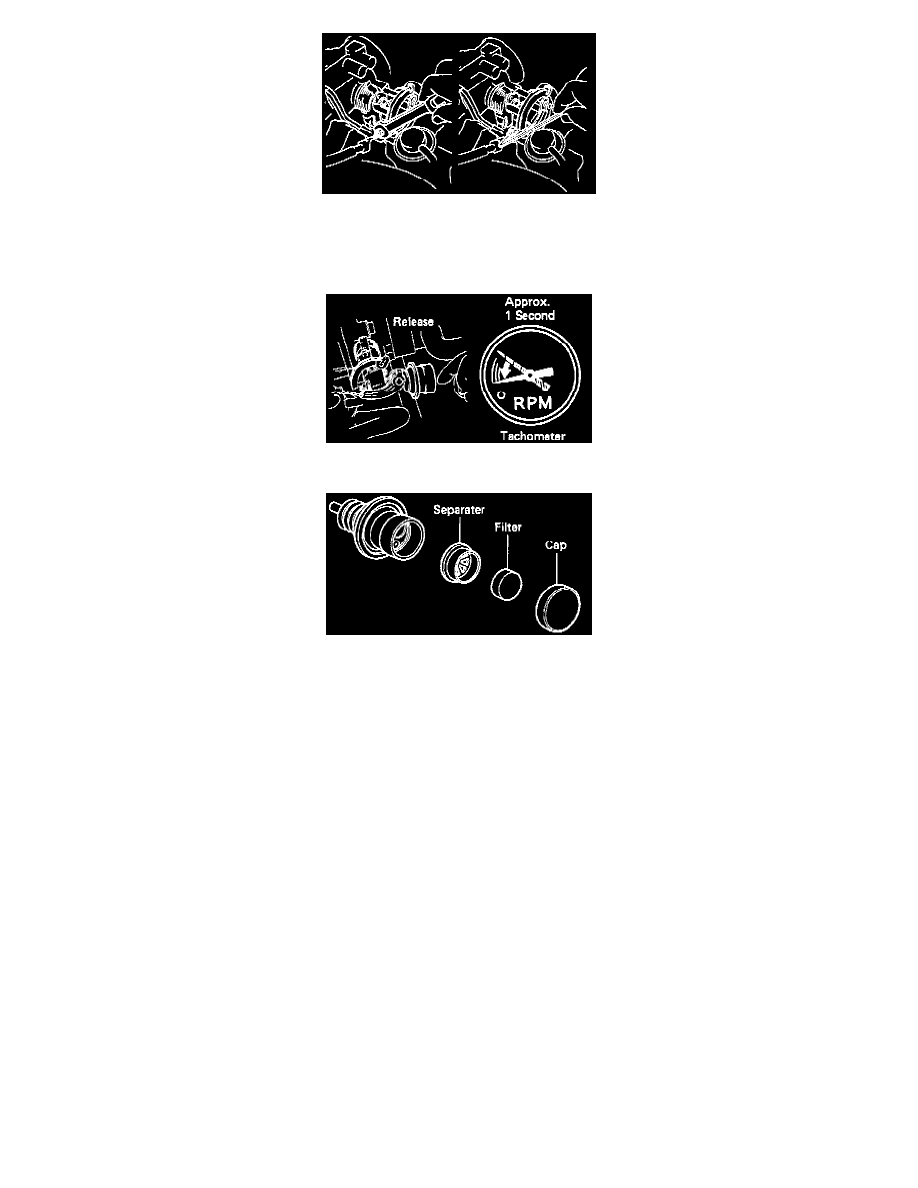

If not as specified, adjust with the Dash Pot adjusting screw.
5. Check operation of VTV
^
Set the Dash Pot setting speed as shown in steps above.
^
Remove your finger from the hole and check that the engine returns to idle speed in approx. 1 second.
6. Reinstall Dash Pot separator, filter and cap. Install the filter with the coarser surface facing the atmospheric side (outward).
