T100 Pickup 4WD V6-180.5 2959cc 3.0L SOHC (3VZ-E) (1993)
/Page-1051002.png)

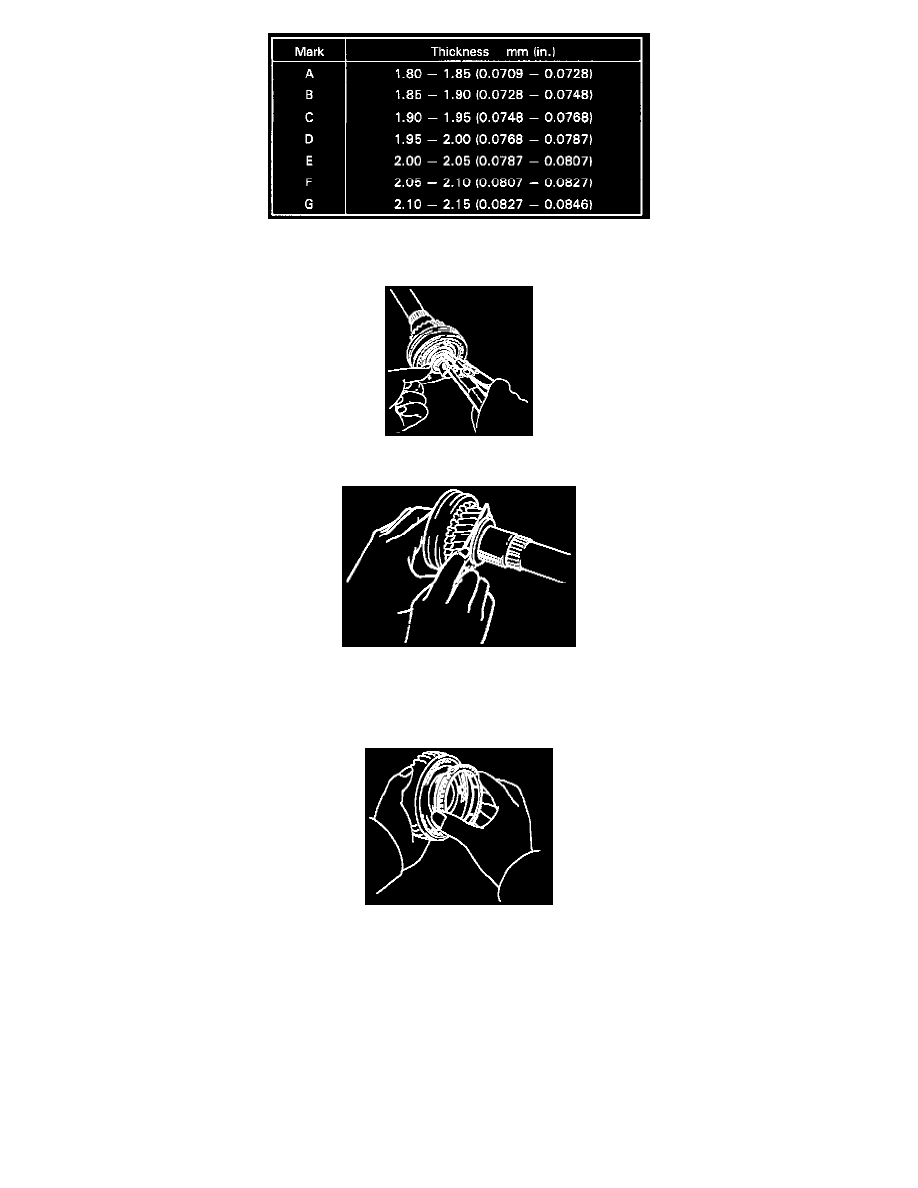

3. INSTALL SNAP RING
(a) Select a snap ring that will allow minimum axial play.
(b) Using snap ring pliers, install the snap ring.
4. MEASURE THIRD GEAR THRUST CLEARANCE
Using a feeler gauge, measure the 3rd gear thrust clearance.
Standard clearance:
0.10 - 0.25 mm (0.0039 - 0.0098 in.)
5. INSTALL SECOND GEAR AND HUB SLEEVE NO.1
(a) Apply gear oil to the shaft and needle roller bearing.
(b) Place the synchronizer ring on the gear and align the ring slots with the shifting keys.
(c) Install the needle roller bearing in the 2nd gear.
