T100 Pickup 4WD V6-180.5 2959cc 3.0L SOHC (3VZ-E) (1993)
/Page-1051004.png)

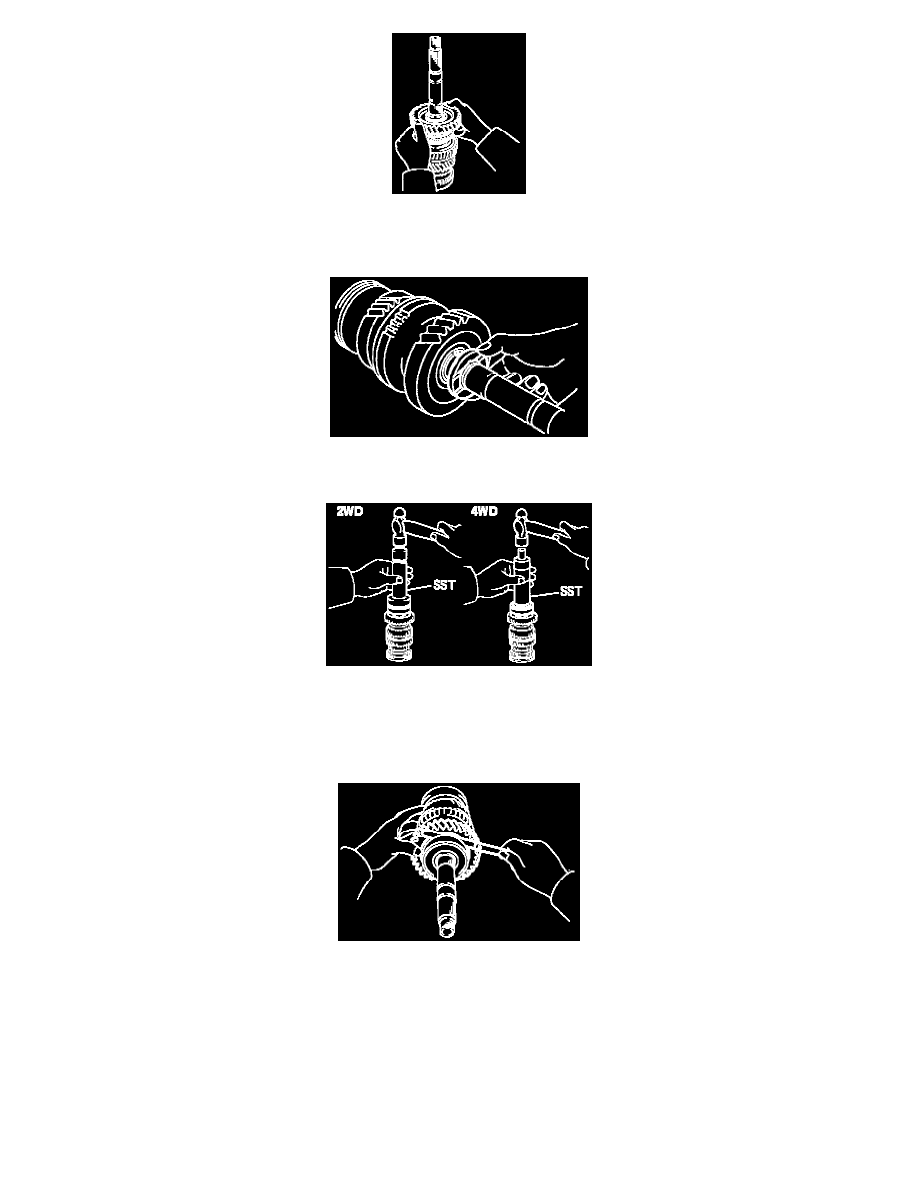

(b) Apply gear oil to the needle roller bearing.
(c) Assemble the 1st gear, synchronizer ring and needle roller bearing.
(d) Install the assembly on the output shaft with the synchronizer ring slots aligned with the shifting keys.
8. INSTALL STRAIGHT PIN AND FIRST GEAR THRUST WASHER
Install the 1st gear thrust washer onto the output shaft with the straight pin aligned with the 1st gear thrust washer.
9. INSTALL OUTPUT SHAFT CENTER BEARING
Using SST, drive in the bearing with the outer race snap ring groove toward the rear.
SST (2WD) 09309-35010
(4WD) 09316-60010
(09316-00010, 09316-00070)
10. MEASURE FIRST GEAR THRUST CLEARANCE
Using a feeler gauge, measure the 1st clearance.
Standard clearance:
1st gear 0.10 - 0.45 mm (0.0039 - 0.0177 in.)
