Tacoma 2WD L4-2.4L (2RZ-FE) (1996)
/Page-1459002.png)
^
Operating Door Lock Control SW or Door Key Lock and Unlock SW
With Ignition Key in Cylinder (Unlock Warning SW ON), when the Door is opened and locked using Door Lock Control SW or Door Key
Lock and Unlock SW, the Door Lock is locked once but each Door is unlocked by the function of SW contained in motor, which inputs the
signal to TERMINAL 9 or 12 of the Relay. According to this input signal, the current in Relay flows from TERMINAL 2 of the Relay -->
TERMINAL 1 --> TERMINAL 7 (LH), 6 (RH) of the Door Lock Motors --> TERMINAL 3 (LH), 2 (RH) --> TERMINAL 6 of the Relay
--> TERMINAL 11 --> to Ground and causes all the Doors to unlock.

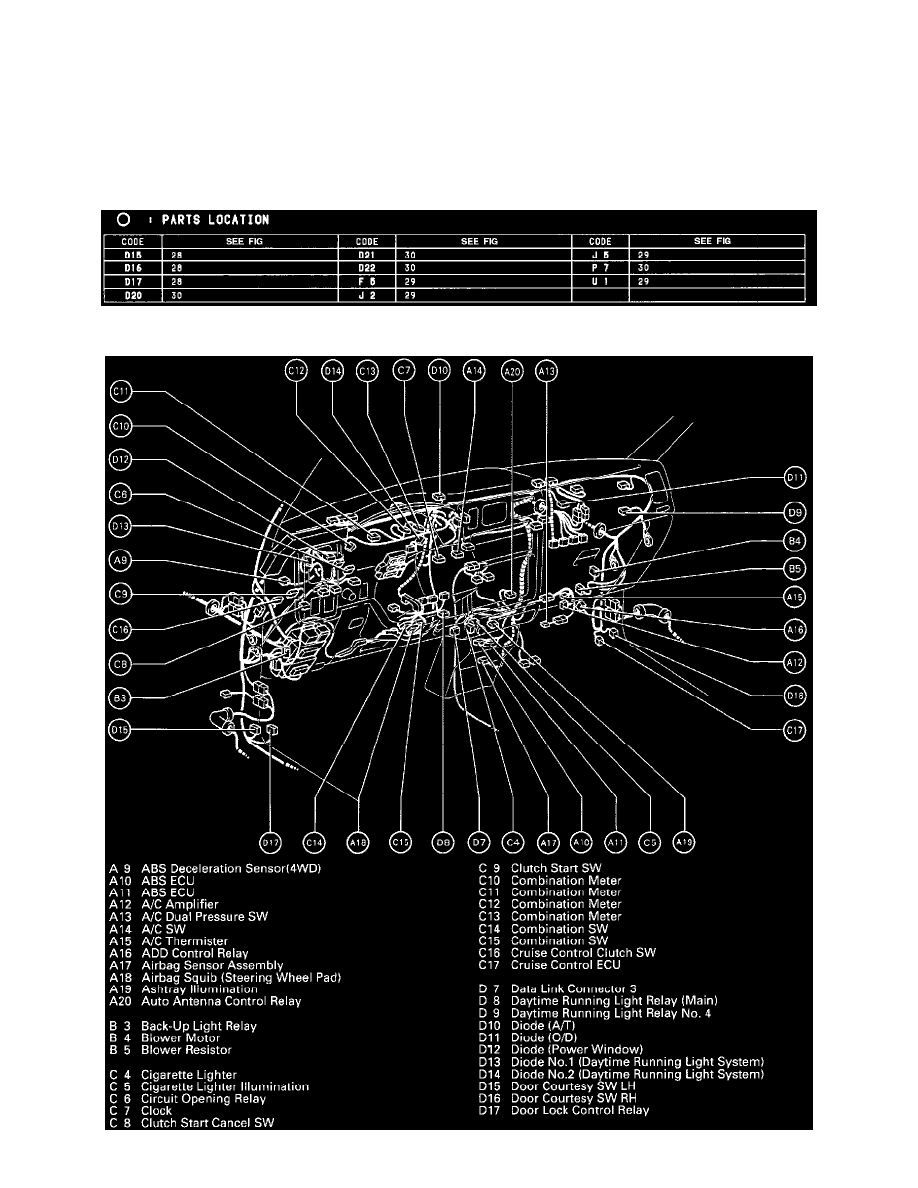

Parts Location
Parts Location
