Tacoma Regular Cab 2WD L4-2438cc 2.4L DOHC MFI (1997)
Control Arm Bushing: Service and Repair
Lower Suspension Arm Bushing
LOWER SUSPENSION ARM BUSHING REPLACEMENT
1. Remove lower suspension arm bushing.

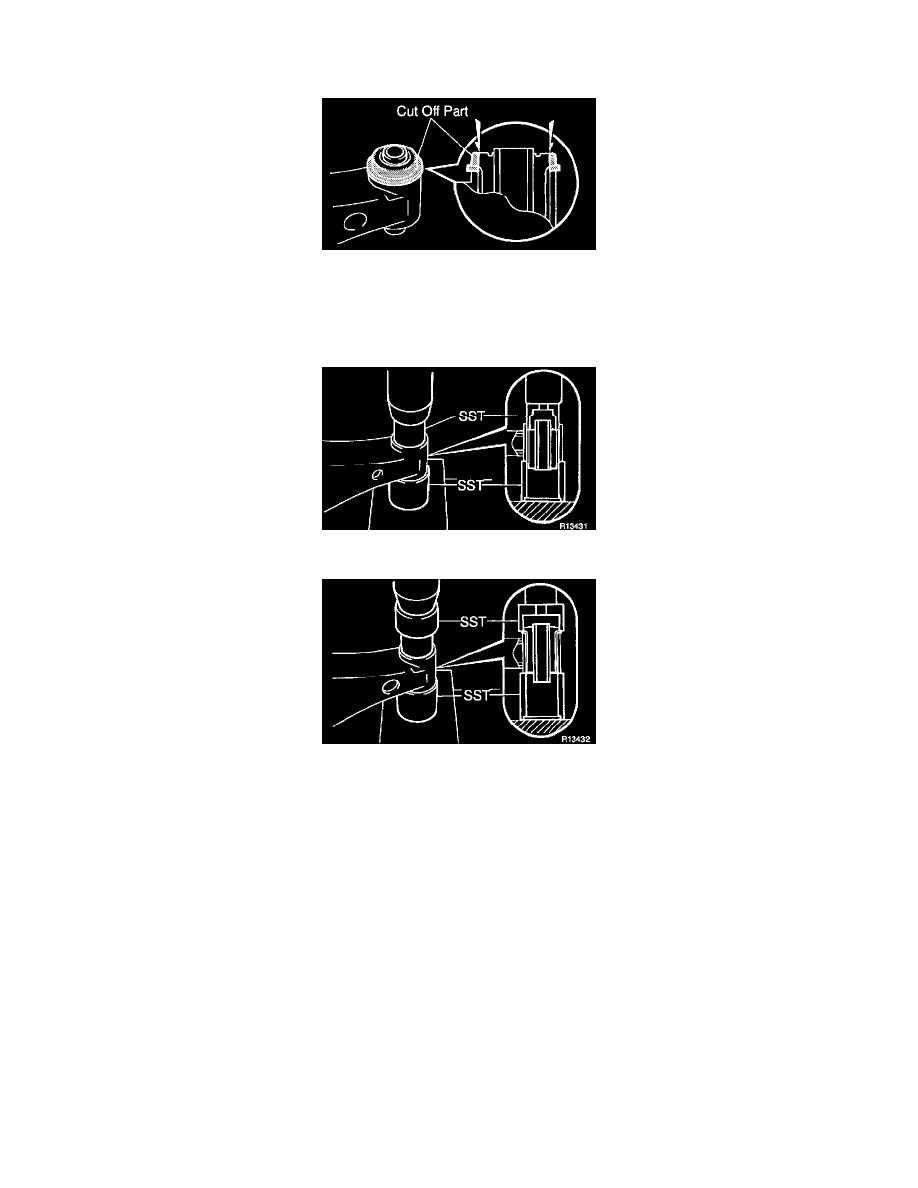

a. Cut off the shaded portion shown in the illustration to expose the edge of the tube.
NOTICE: Be careful not to damage the edge of the arm tube.
b. Face the cut side downward and using SST 09710 - 30021 (09710 - 03071, 09710 - 03141) and a press, remove the bushing.
2. Install lower suspension arm bushing. Using SST 09710 - 30021 (09710 - 03101, 09710 - 03141) and a press, install a new bushing.
NOTICE: Press in the bushing from the rear side.
