Control Module HVAC: Testing and Inspection
Air Conditioning Amplifier
A/C Amplifier With P/S
Connector Views
A/C Amplifier, With P/S

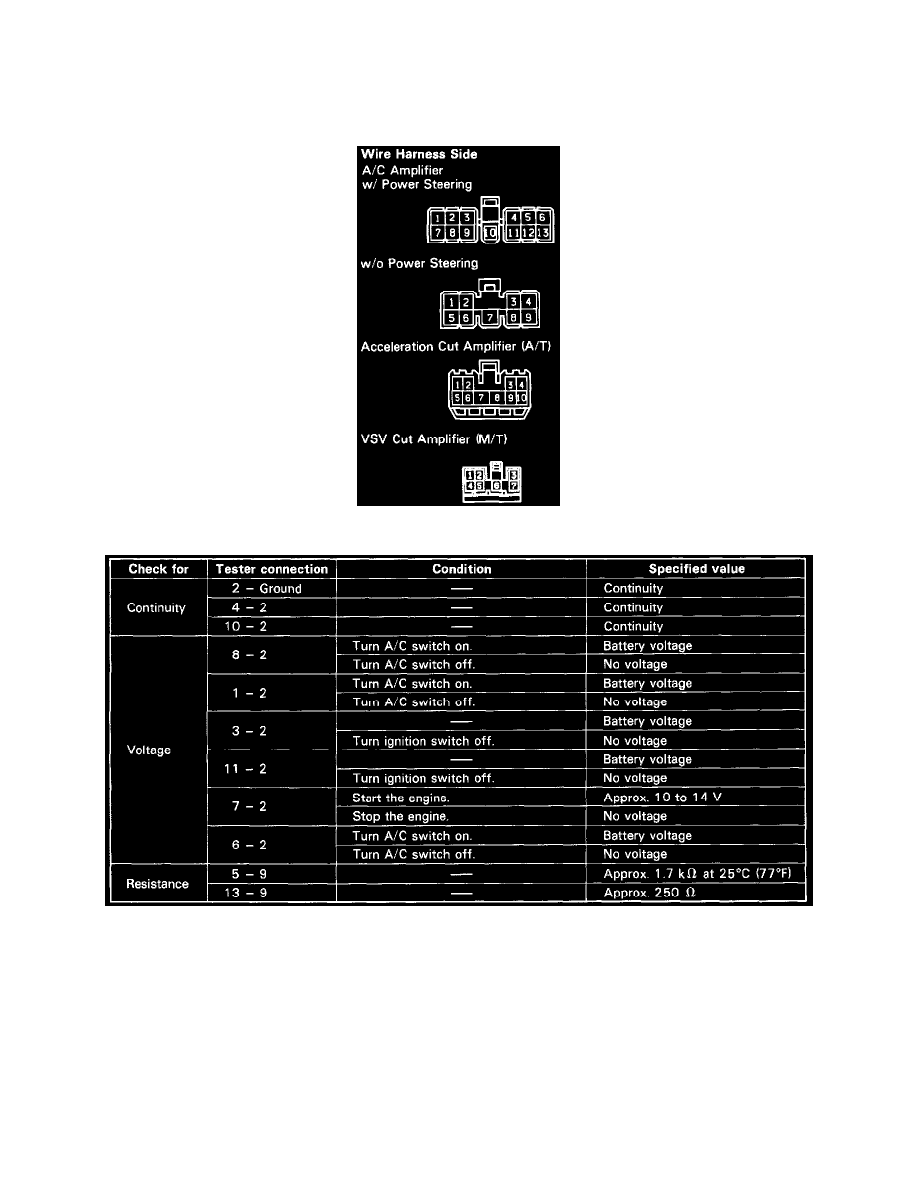

Disconnect the amplifier and test the connector terminals on the
wire harness side as shown in the chart.
Test conditions:
1. Ignition switch: ON
2. Temperature control level: MAX COOL
3. Blower switch: HI
A/C Amplifier Without P/S
