Tercel Sedan L4-1456cc 1.5L SOHC (3E) (1988)

  • Relays and Modules
  • Relays and Modules - Powertrain Management
  • Relays and Modules - Computers and Control Systems
  • Engine Control Module
  • Component Information
  • Locations

Page 1
background image

Engine Control Module: Locations

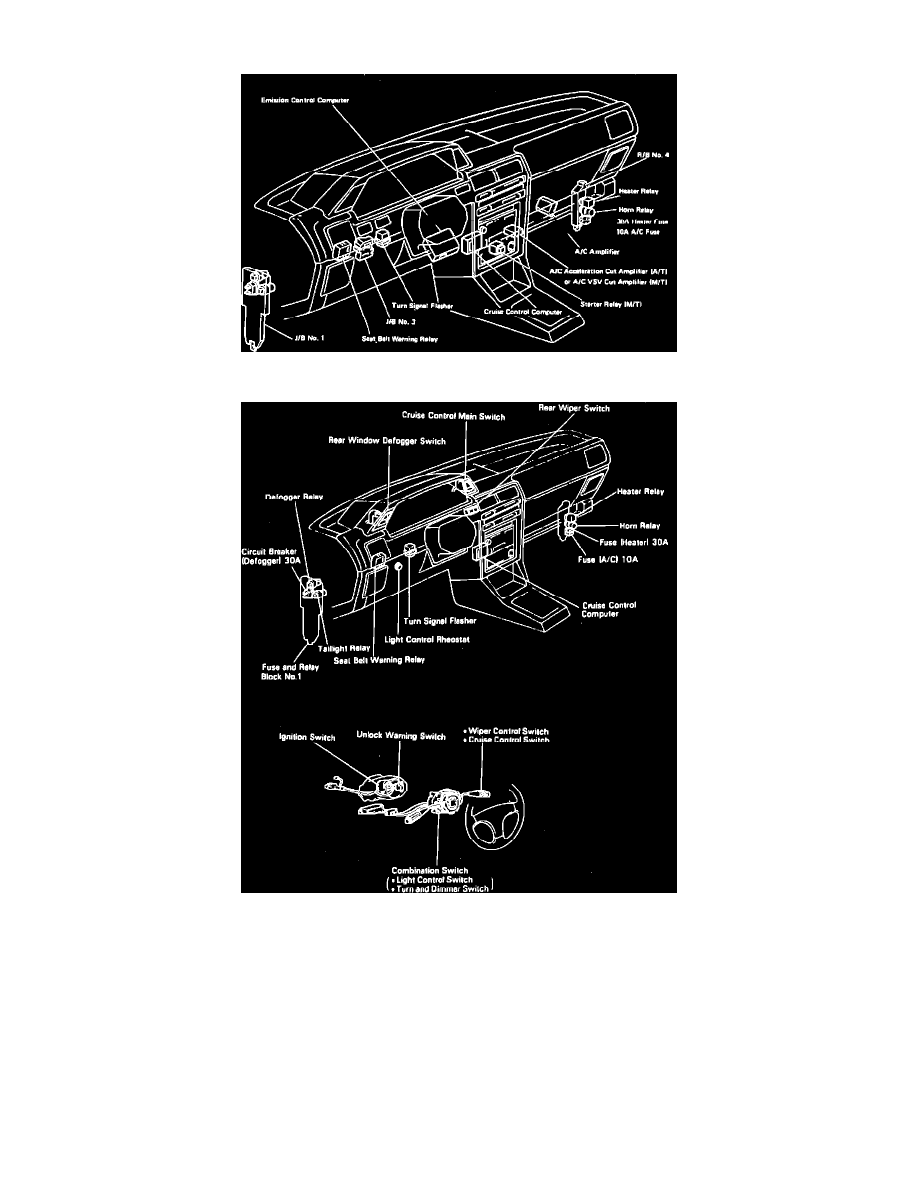

I/P Components (Part 1 Of 2).

I/P Components (Part 1 Of 2).

 Behind Left Side Of I/P

Applicable to:  1987 Tercel Sedan
