Tercel Sedan L4-1456cc 1.5L SOHC (3E) (1988)
Wheel Hub: Customer Interest
Drivetrain - Front Axle Hub Bearing Knocking Noise
REFERENCE SUSPENSION
NUMBER
004
DATE
10-06-89
MODEL
AE9, EL3, SV2,
VV2
TITLE FRONT AXLE HUB BEARING
To reduce the possibility of a knocking noise from the front axle hub bearings when driving on rough roads at low speeds, the front axle hub bearing and
steering knuckle nut have been changed.
REPAIR (INSTALLATION) PROCEDURE:
1)
If a knocking noise is heard, replace the front axle hub bearing and the steering knuckle nut as a set (reference applicable repair manual for
detailed information).
2)
Tightening torque for the steering knuckle nut is:
203 ft.lb. (2,800 kg cm)

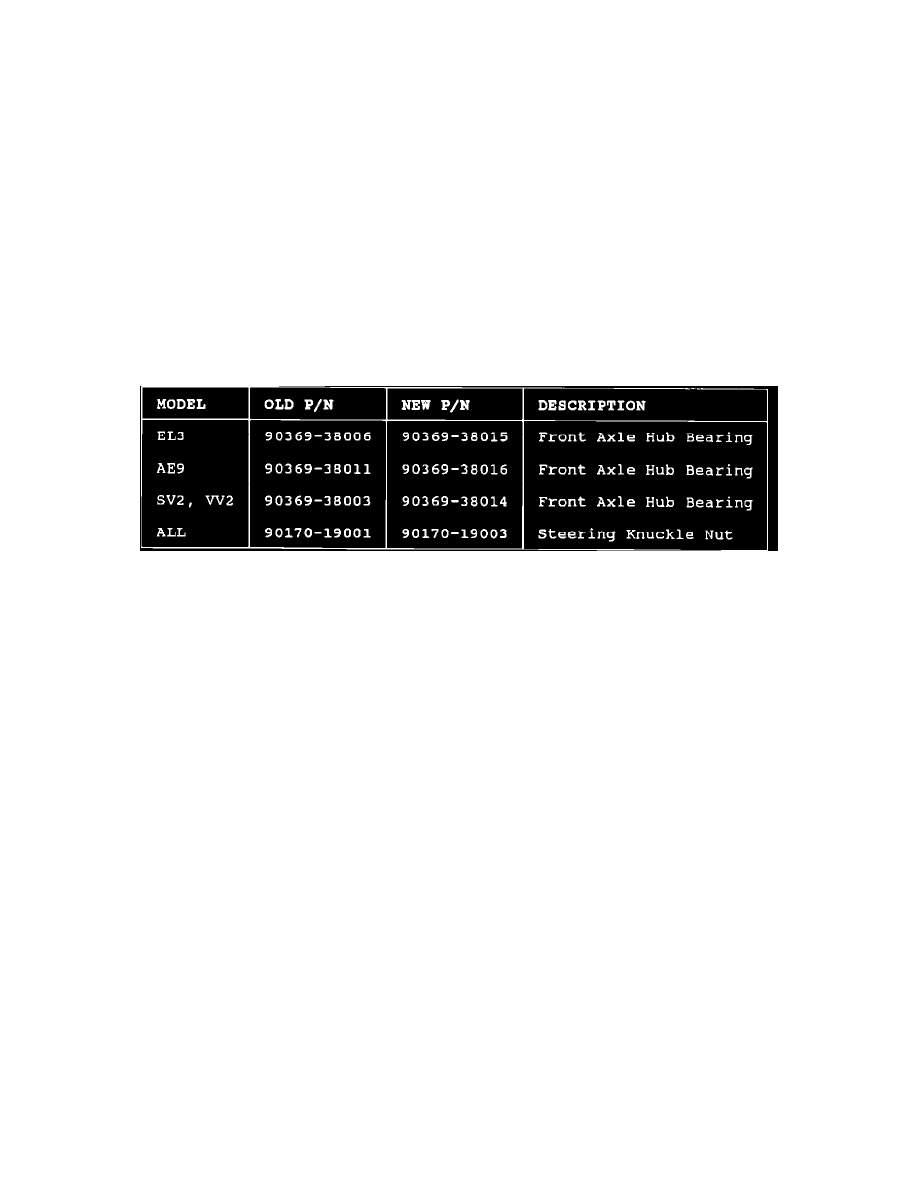

PART NUMBER INFORMATION:
Replace the front axle hub bearing and the steering knuckle nut as a set.
