Tundra 2WD V6-4.0L (1GR-FE) (2005)

Page 1
background image

Navigation Module: Testing and Inspection

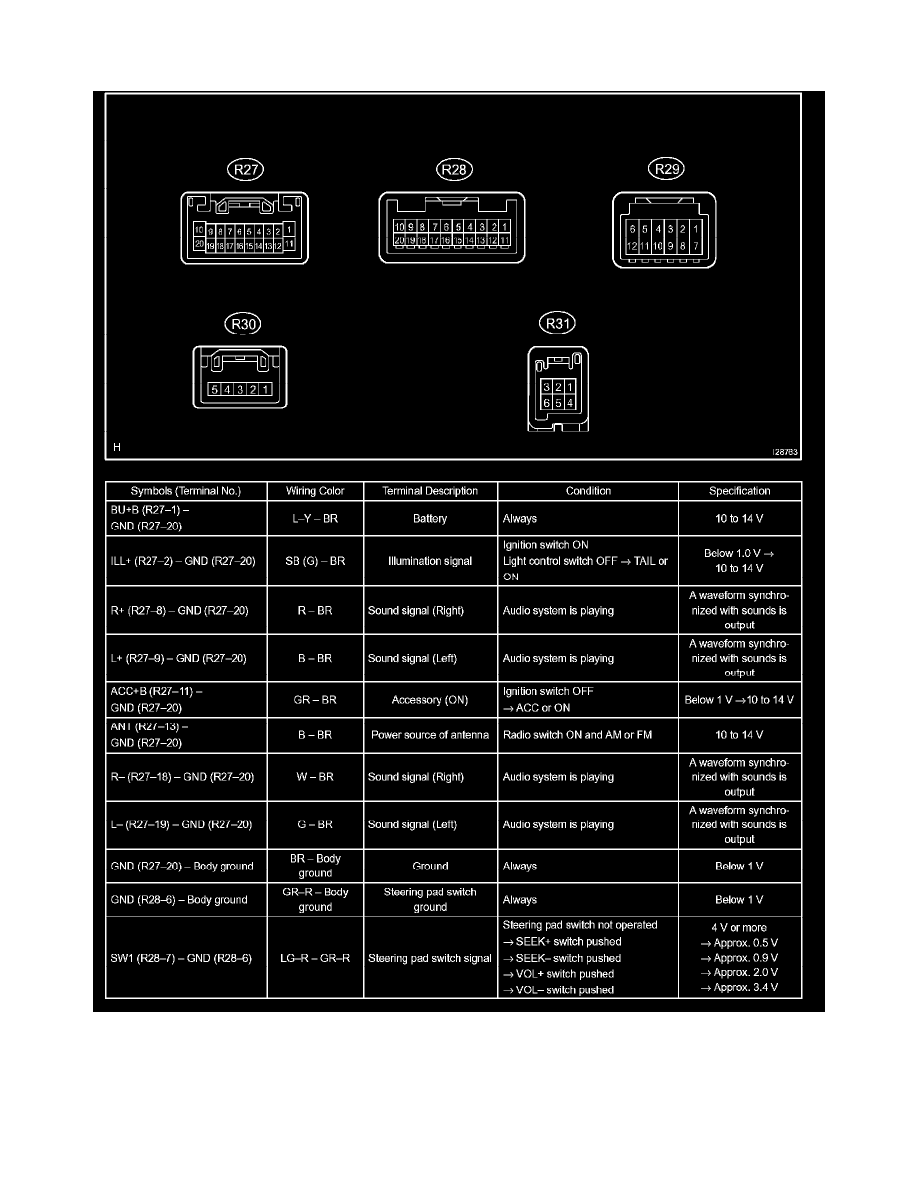

TERMINALS OF ECU

Terminals Of Control Module / Pinouts Part 1
