Tundra 2WD V6-4.0L (1GR-FE) (2005)
/Page-904001.png)
ABS Light: Testing and Inspection
Anti-Lock Brake System
ABS WARNING LIGHT CIRCUIT
CIRCUIT DESCRIPTION
If the ECU detects trouble, the ABS warning light comes on while the ABS control is prohibited and at the same time, the ECU records a DTC in
memory.
After removing the short pin of the DLC3, connect terminals TC and CG of the DLC3 to make the ABS warning light blink and to output the DTC.

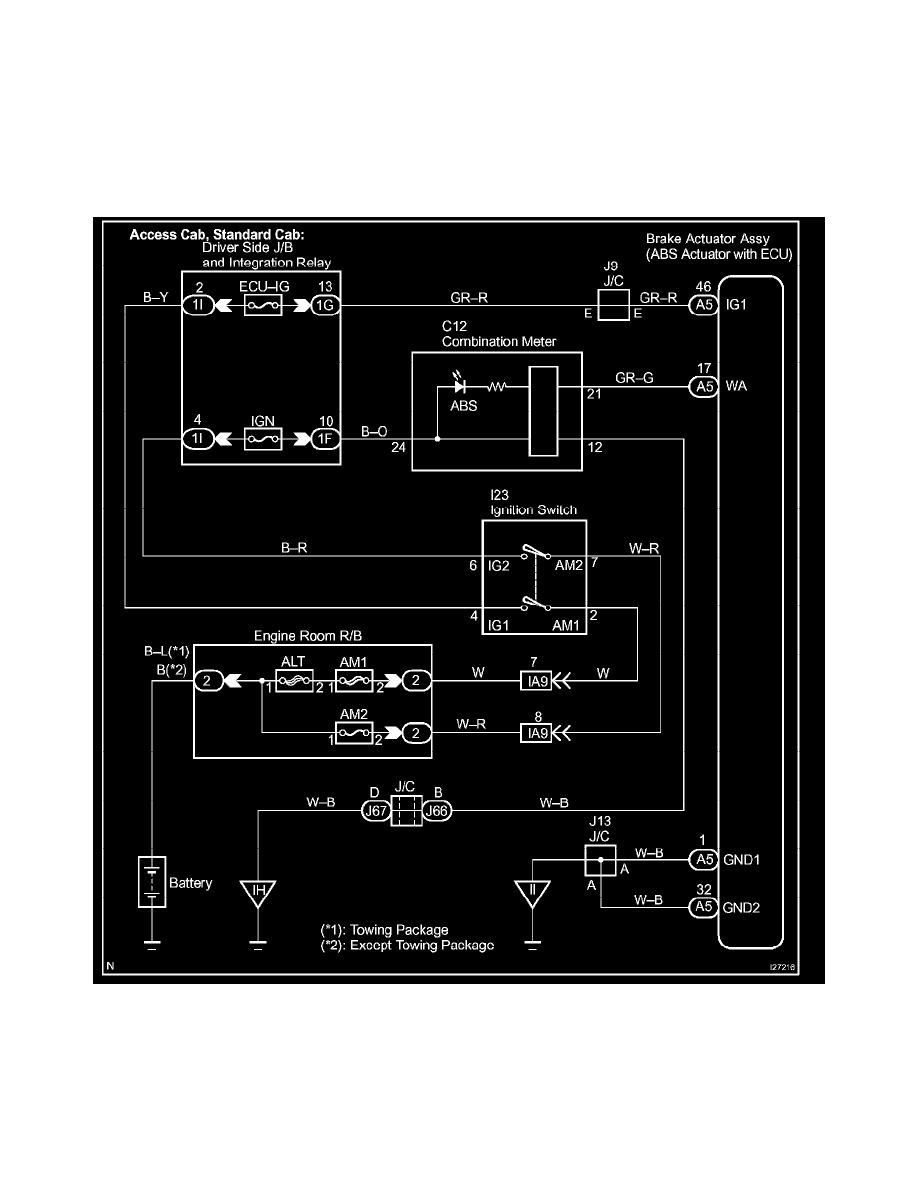

Wiring Diagram
