Traction Control Indicator Lamp: Testing and Inspection
VSC TRAC Warning Light Circuit (Remains On)

VSC TRAC WARNING LIGHT CIRCUIT (REMAINS ON)

CIRCUIT DESCRIPTION
If the skid control ECU stores DTCs to shut down VSC & TRAC operation, the VSC TRAC warning light comes on in the combination meter.

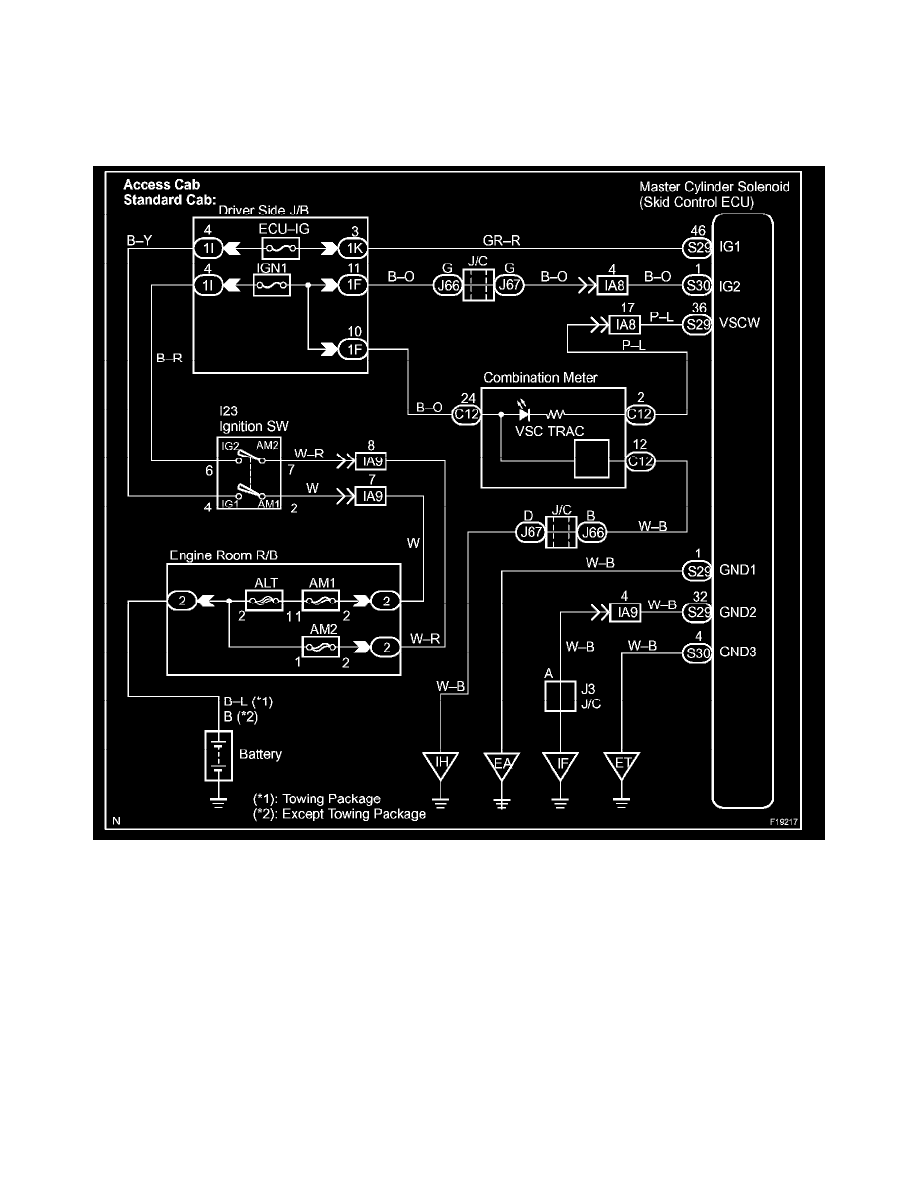

Wiring Diagram
