Tundra 2WD V6-4.0L (1GR-FE) (2005)
/Page-1755001.png)
Map Light: Testing and Inspection
Double Cab

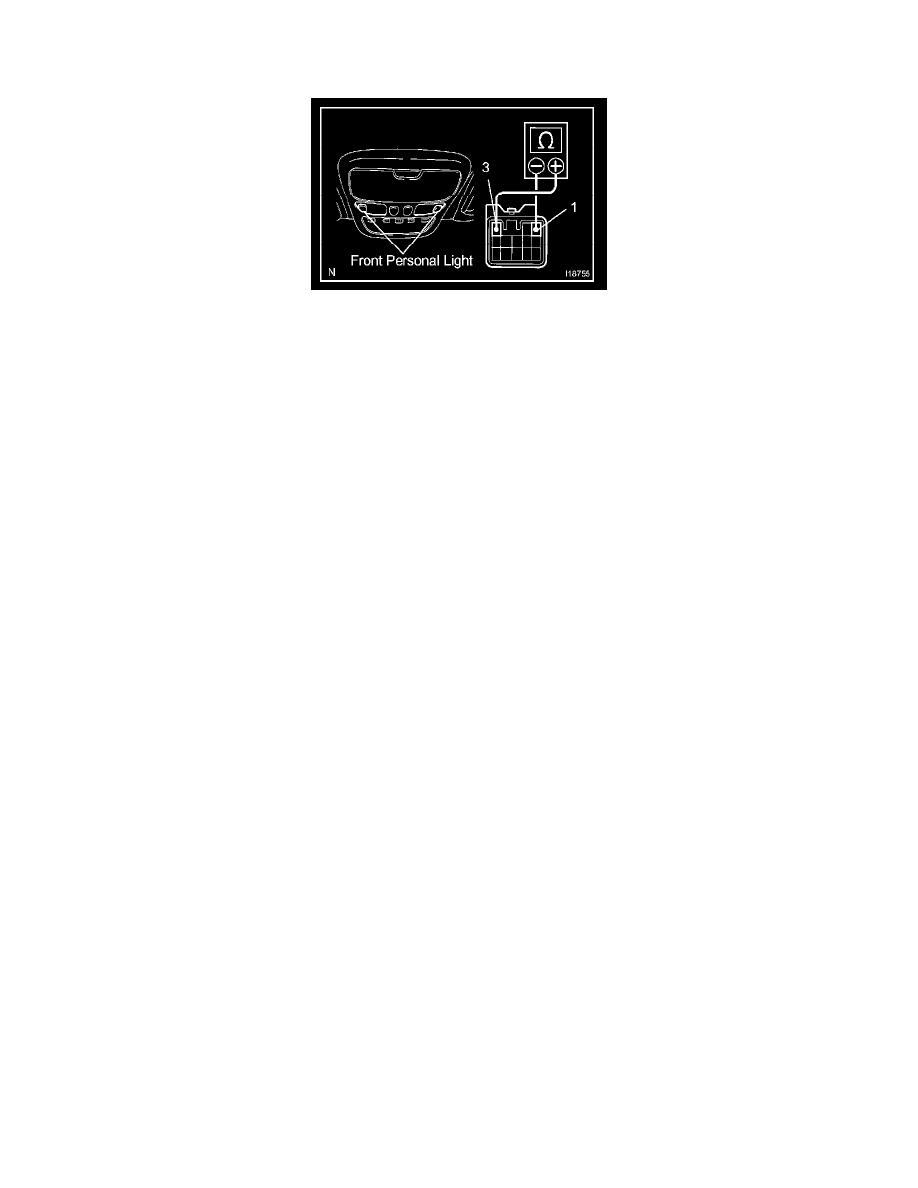

INSPECT FRONT PERSONAL LIGHT SWITCH CONTINUITY
a. Disconnect the connector from the personal light.
b. Push the personal light switch on, check that continuity exists between terminals 1 and 3.
If the continuity is not as specified, replace the bulb or light.
