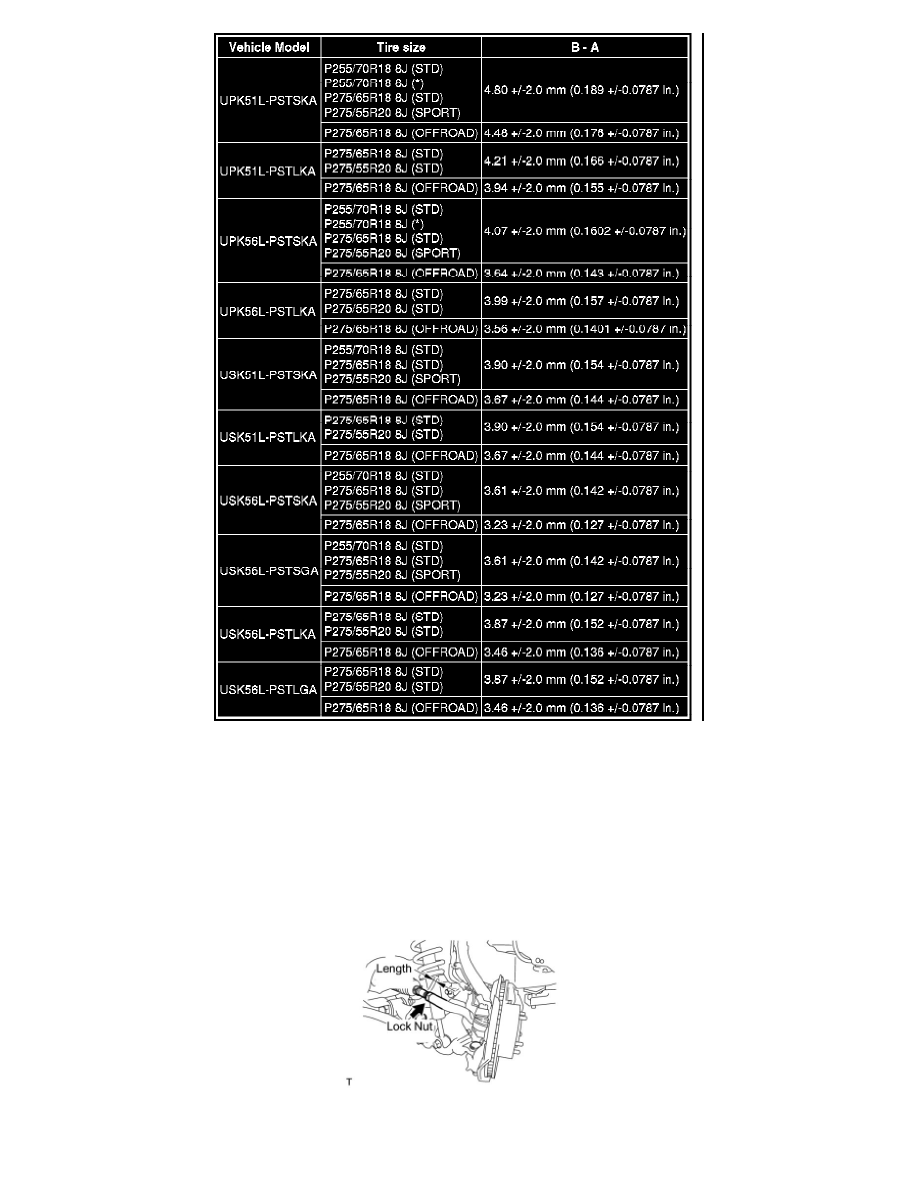

(b) * for 5 leaf spring
*
If the toe-in is not as specified, adjust it at the rack ends.
4. ADJUST TOE-IN
(a) Release the rack boot set clips.
(b) Loosen the tie rod end lock nuts.
(c) Turn the right and left rack ends by an equal amount to adjust the toe-in to the center value.
(d) Check that the length of the right and left rack ends are approximately the same.
