Tundra 2WD V8-5.7L (3UR-FE) (2007)
/Page-2069001.png)
Door Switch: Testing and Inspection

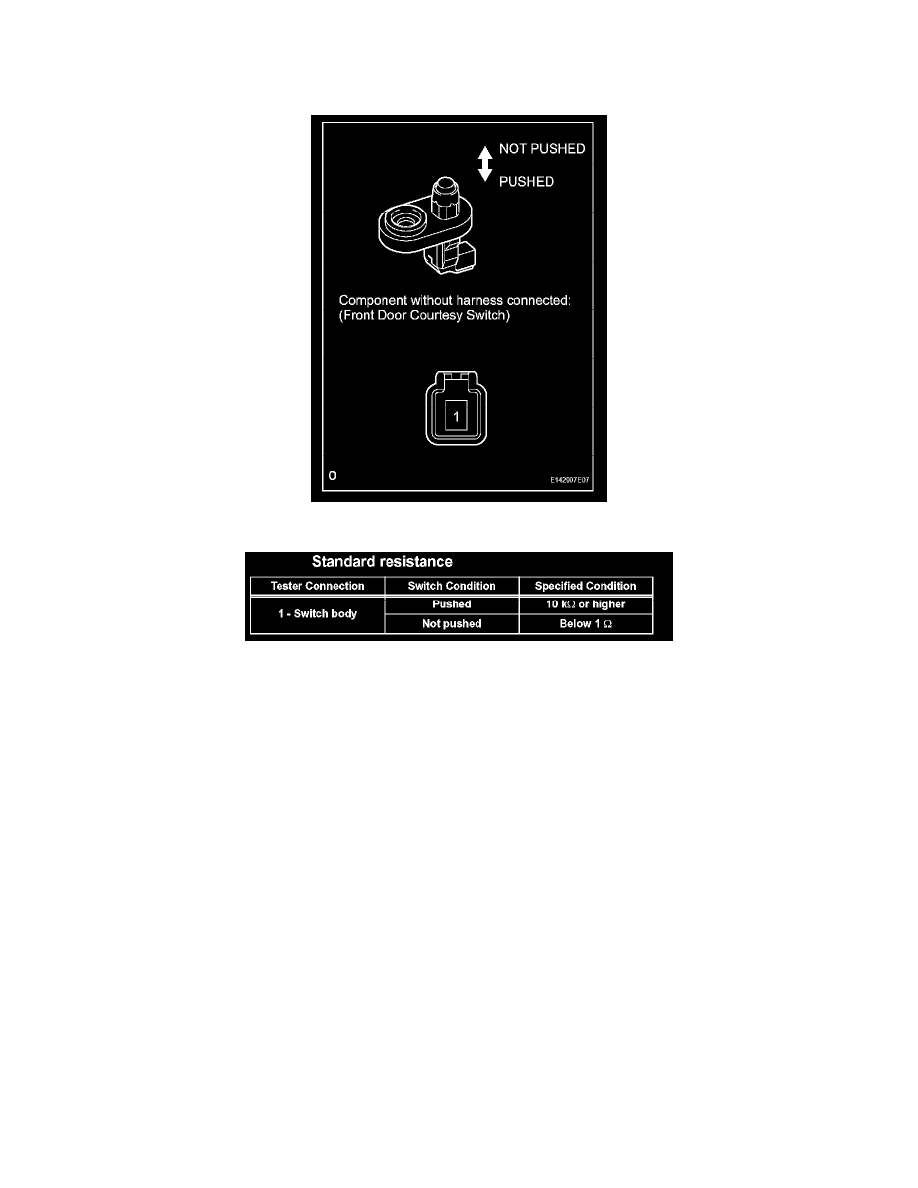

Front Door Courtesy Switch
INSPECTION
1. INSPECT FRONT DOOR COURTESY SWITCH
a. Measure the resistance according to the value(s) in the table given.
If the result is not as specified, replace the switch.
