Tundra Access Cab SR5 2WD V6-3.4L (5VZ-FE) (2000)

Page 1
background image

Power Seat Switch: Testing and Inspection

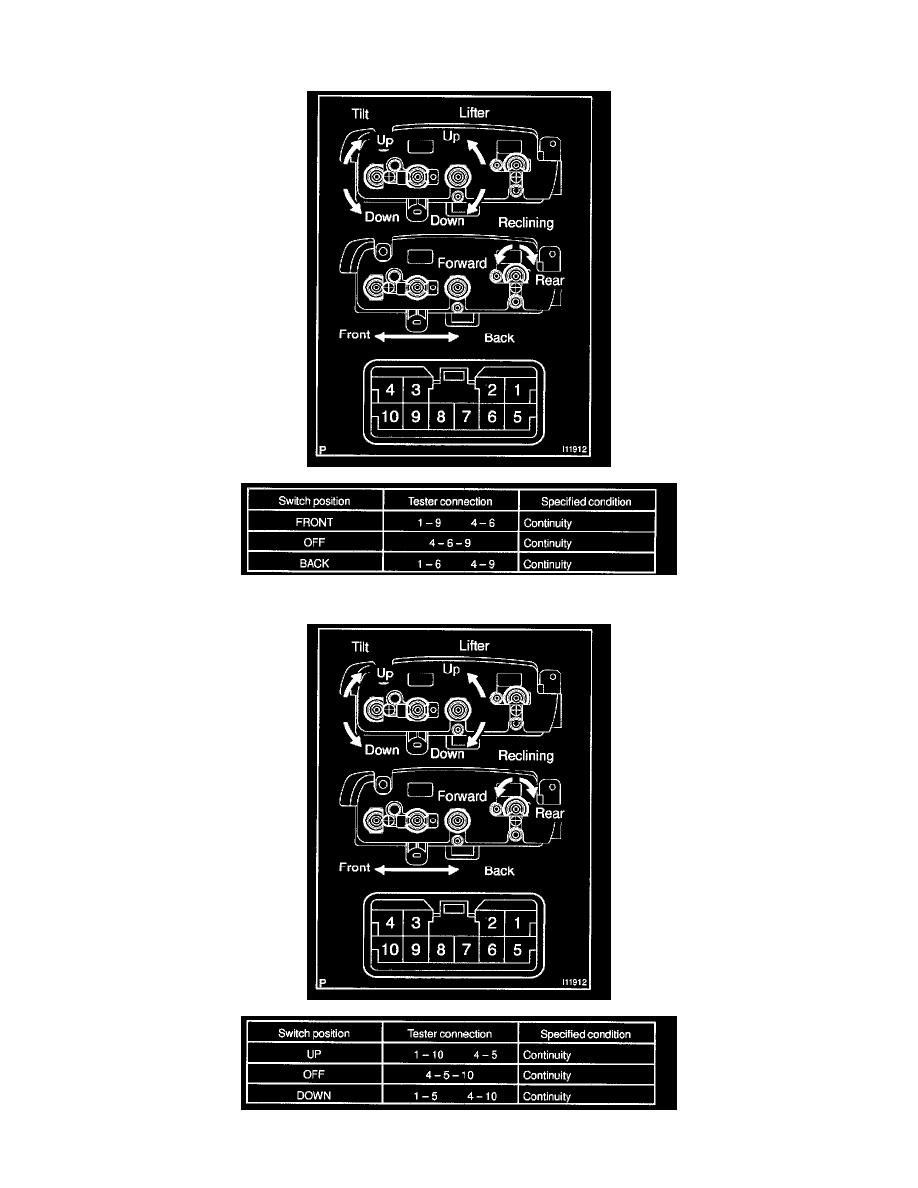

INSPECT DRIVER'S POWER SEAT SWITCH CONTINUITY

Slide switch:

Front tilt switch:
