Air Conditioning Switch: Testing and Inspection

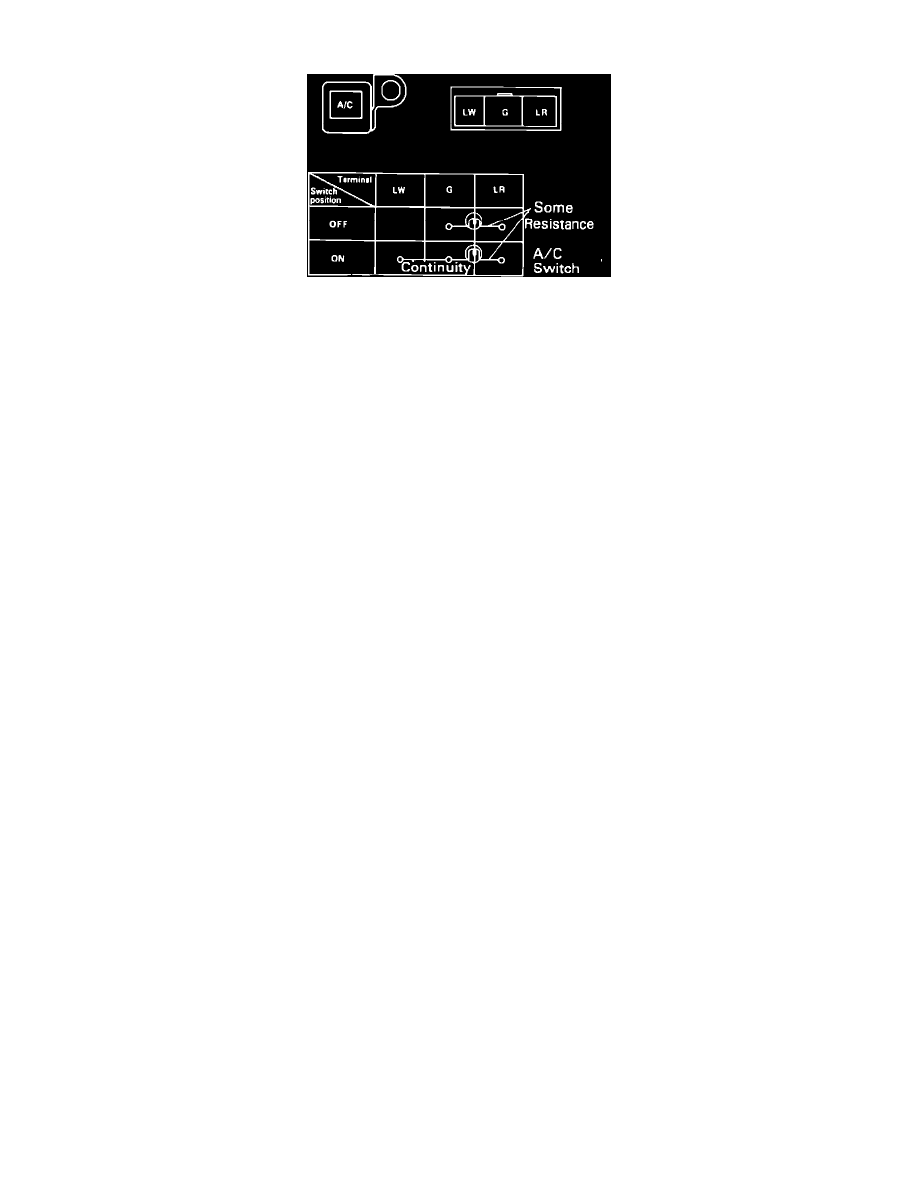

Fig. 13 A/C switch continuity test.

1.

Disconnect electrical connector from A/C switch.

2.

Using an ohmmeter, check continuity between specified switch position, Fig. 13 and A/C switch terminals.

3.

If no continuity is indicated, replace A/C switch.
