Radiator Cooling Fan Motor Relay|Locations|Page 2365 > < Components|Page 2361

Location of Radiator Cooling Fan Motor Relay on Venza FWD L4-27L (1AR-FE) (2009)

Page 1
background image

Radiator Cooling Fan Motor Relay: Locations

1AR-FE COOLING: COOLING FAN SYSTEM: PARTS LOCATION

PARTS LOCATION

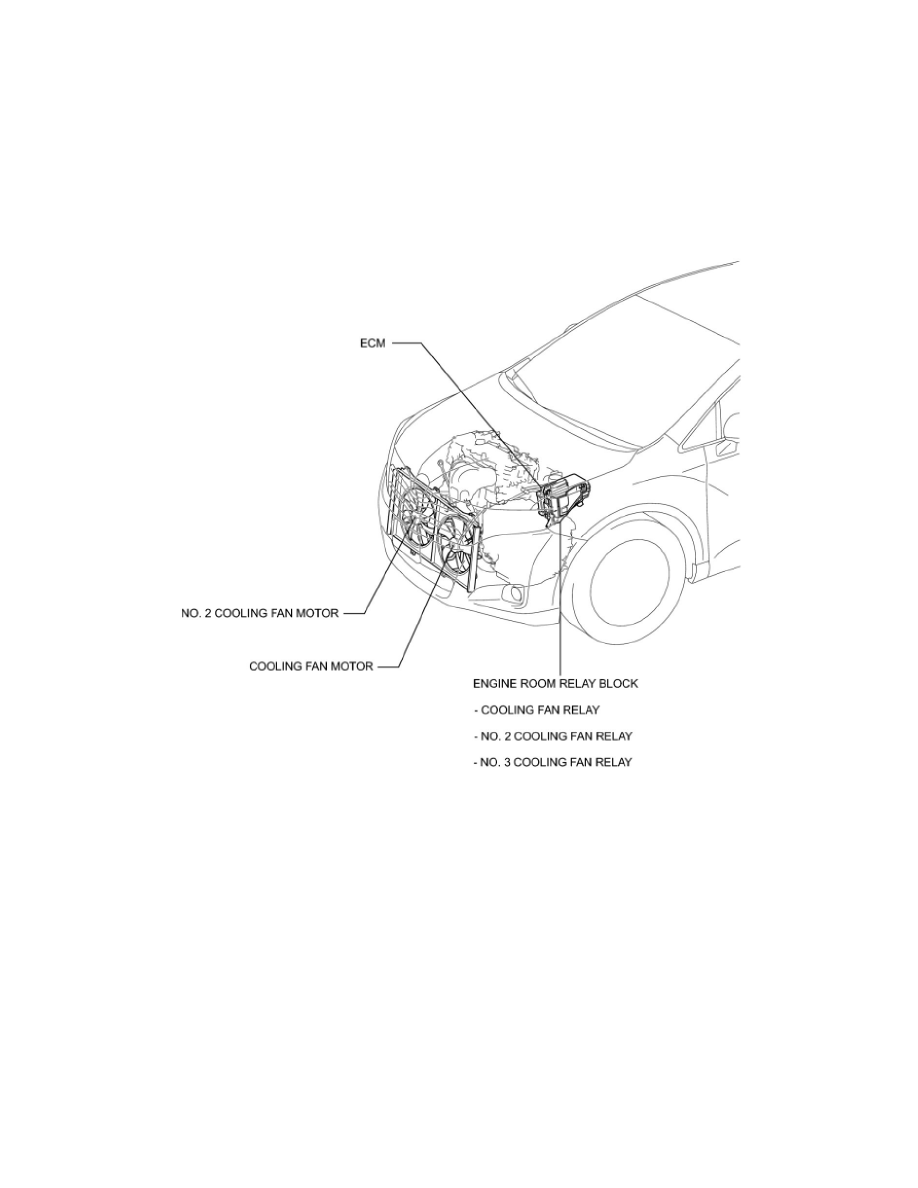

ILLUSTRATION

Radiator Cooling Fan Motor Relay|Locations|Page 2365 > < Components|Page 2361
